EVI UPS
Showing all 16 resultsSorted by price: high to low
- EVI UPS, UPS Power Backups

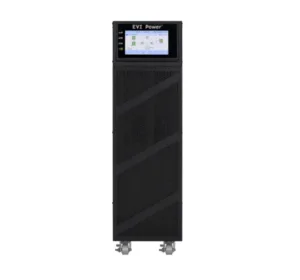

EVI 40000VA / 36000W Tower Online 3 Phase UPS
- Capacity: 40000VA / 36000W
- Technology: Online double conversion with DSP
- Input/Output: 3 Phase
- Transfer Time: 0ms
- Parallel Redundancy: N+X, up to 4 units
- Output Power Factor: 0.9
- Input Harmonic Distortion: ≤3%
- Input Voltage Range: 208 – 478 Vac
- Frequency Range: 40 – 70Hz
- Battery: Inbuilt, optional external battery packs
- Safety: EPO, Eco mode, full digital control
- Communication: USB, RS232, RS485, parallel port, dry contact; optional SNMP/relay card
- Display: 7-inch Touch LCD
- Connectivity: Terminal input/output ports
SKU: n/a - EVI UPS, UPS Power Backups
EVI 20000VA / 18000W Tower Online 3 Phase UPS
- Capacity: 20000VA / 18000W
- Technology: Online double conversion with DSP
- Input/Output: 3 Phase
- Transfer Time: 0ms
- Parallel Redundancy: N+X, up to 4 units
- Output Power Factor: 0.9
- Input Harmonic Distortion: ≤3%
- Input Voltage Range: 208 – 478 Vac
- Frequency Range: 40 – 70Hz
- Battery: Inbuilt, optional external packs
- Safety: EPO, Eco mode, digital control
- Communication: USB, RS232, RS485, parallel port, dry contact; optional SNMP/relay card
- Display: 7-inch Touch LCD
- Connectivity: Terminal input/output ports
SKU: n/a - EVI UPS
EVI 10000VA / 9000W Tower Online 3 Phase UPS
- Capacity: 10000VA / 9000W
- Technology: Online double conversion with DSP
- Input/Output: 3 Phase
- Transfer Time: 0ms
- Parallel Redundancy: N+X, up to 4 units
- Power Factor: 0.9
- Input Harmonic Distortion: ≤3%
- Input Voltage Range: 208 – 478 Vac
- Frequency Range: 40 – 70Hz
- Modes: ECO mode, DC start, self-test
- Communication: USB, RS232, RS485, parallel, dry contact; optional SNMP/relay card
- Display: 7-inch Touch LCD
- Battery: Inbuilt, optional external packs
- Safety: EPO function
- Connectivity: Terminal input/output ports
SKU: n/a - EVI UPS, UPS Power Backups

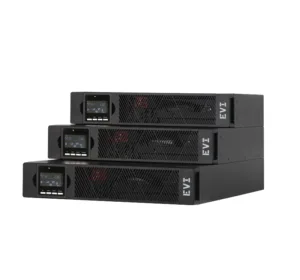

EVI 10000VA / 10000W Rack Mount Online Single Phase UPS
- Product type: Online uninterruptible power supply (UPS)
- Rated capacity: 10,000VA / 10,000W
- UPS topology: Online double conversion
- Phase: Single phase
- Input connection: Terminal block (L+N+G)
- Input voltage range: 110–300V AC
- Input power factor: 0.99 with PFC
- Output power factor: 1.0
- Transfer time, AC to battery: 0 ms typical
- Transfer time, inverter to bypass: 0 ms typical
- Built-in batteries: 16 × 7Ah lead-acid
- Battery system voltage: 192V
- External battery connection: Yes
- Maximum charging current: 15A
- Output voltage selection: 200 / 208 / 220 / 230 / 240V AC
- Display: 3.5-inch touchscreen
- Output sockets: 2 × C19, 3 × C13
- Communication: USB, RS232, RS485
- Additional interface: Parallel port and intelligent card slot
- Emergency shutdown: EPO
- Other features: ECO mode, generator compatibility, maintenance-bypass dry contact, programmable dry-contact port
- Form factor: 4U rack mount
SKU: n/a - EVI UPS, UPS Power Backups

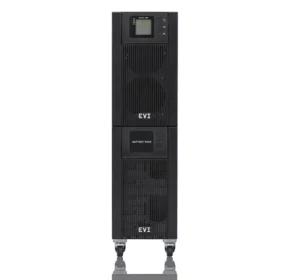

EVI 10000VA / 9000W Tower Online Single Phase UPS
- Capacity: 10000VA / 9000W
- Technology: Online double conversion with DSP
- Parallel Redundancy: N+X supported
- Input Current Harmonic: <3%
- Output Power Factor: 0.9 PF
- Input Voltage Range: 120 – 276 Vac
- Input Frequency Range: 50Hz (45–55Hz) / 60Hz (54–66Hz)
- Modes: Eco mode, cold start, self-test at startup
- Communication: RS232, USB, optional SNMP / parallel / relay card
- Display: Rotating LCD screen
- Connectivity: Terminal input/output ports
- Generator Compatible: Yes
SKU: n/a - EVI UPS, UPS Power Backups
EVI 6000VA / 5400W Tower Online Single Phase UPS
- Capacity: 6000VA / 5400W
- Technology: Online double conversion with DSP
- Parallel Redundancy: N+X support
- Input Current Harmonic: <3%
- Output Power Factor: 0.9 PF
- Input Voltage Range: 120 – 276 Vac
- Input Frequency Range: 50Hz (45–55Hz) / 60Hz (54–66Hz)
- Modes: ECO mode, cold start, self-testing
- Communication: RS232, USB, optional SNMP / parallel / relay card
- Display: Rotating LCD
- Connectivity: Terminal input/output ports
- Generator Compatible: Yes
SKU: n/a - EVI UPS, UPS Power Backups
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS
- Product type: Online single-phase UPS
- UPS topology: Online double-conversion
- Rated capacity: 6,000VA / 6,000W
- Input voltage rangeL: 110–300V AC
- Input power factor: 0.99 with PFC
- Output power factor: 1.0
- Typical AC-to-battery transfer time: 0ms
- Typical inverter-to-bypass transfer time: 0ms
- Selectable output voltage: 200V, 208V, 220V, 230V or 240V AC
- Battery type: Lead-acid
- Built-in battery configuration: 16 × 12V 7Ah
- Battery bus voltage: 192V
- Maximum charging current: 12A
- External battery support: Yes, with compatible battery expansion equipment
- Display: 3.5-inch touchscreen
- Communication ports: USB, RS232, RS485 and parallel port
- Additional features: EPO, ECO mode, generator compatibility and maintenance bypass contact
- Installation format: 4U rackmount or tower
- Output outlets: 2 × IEC C19 and 3 × IEC C13
SKU: n/a - EVI UPS, UPS Power Backups
EVI 3000VA / 2700W Rack Mount Online Single Phase UPS
- Capacity: 3000VA / 2700W
- Technology: Online double conversion
- Input Voltage Range: 110 – 300 Vac
- Input Power Factor: 0.99 with PFC
- Output Power Factor: 1.0
- Charging Current: Selectable 1A / 2A
- Battery Support: Lead-acid & lithium (BMS supported)
- Modes: ECO mode, 50/60Hz frequency converter
- Functions: Emergency Power Off (EPO), smart battery charging, low priority load disconnection
- Selectable Output Voltage: 200, 208, 220, 230, 240 Vac
- Display: Rotating LCD screen
- Outlets: 8 × IEC C13
- Ports: USB, RS232, optional SNMP card
- Design: Rack mount / tower convertible
SKU: n/a - EVI UPS, UPS Power Backups
EVI 2000VA / 1800W Rack Mount Online Single Phase UPS
- Capacity: 2000VA / 1800W
- Technology: Online double conversion
- Input Voltage Range: 110 – 300 Vac
- Input Power Factor: 0.99 with PFC
- Output Power Factor: 1.0
- Battery Support: Lead-acid & lithium (BMS supported)
- Charging Current: 1A or 2A selectable
- Modes: ECO mode, 50/60Hz frequency converter
- Functions: Emergency Power Off (EPO), low priority load disconnection
- Display: Rotating LCD display
- Outlets: 8 × IEC C13 sockets
- Ports: USB, RS232, optional SNMP card
- Installation: Rack mount / tower convertible
SKU: n/a - EVI UPS, UPS Power Backups
EVI 1000VA / 900W Rack Mount Online Single Phase UPS
- Capacity: 1000VA / 900W
- Technology: Online double conversion
- Input Voltage Range: 110 – 300 Vac
- Input Power Factor: 0.99 (with PFC)
- Output Power Factor: 1.0
- Charging Current: Selectable 1A / 2A
- Battery Support: Lead-acid & lithium (BMS supported)
- Modes: ECO mode, frequency converter (50Hz / 60Hz)
- Functions: EPO, smart battery charging, low priority load disconnection
- Display: Rotating LCD screen
- Outlets: 8 × IEC C13 outlets
- Ports: USB, RS232, optional SNMP card
- Installation: Rack mount / tower convertible
SKU: n/a - EVI UPS, UPS Power Backups
EVI 1600VA / 900W Line Interactive UPS
- Capacity: 1600VA / 900W
- Display: LCD screen with real-time status updates
- Software: Monitoring & control software included
- Battery Management: Intelligent charging system
- Functions: Cold Start capability, AVR (Boost & Buck)
- Outlets: 4 universal sockets
- Ideal For: Computers, routers, POS systems, CCTV, printers, and small appliances
SKU: n/a - EVI UPS, UPS Power Backups

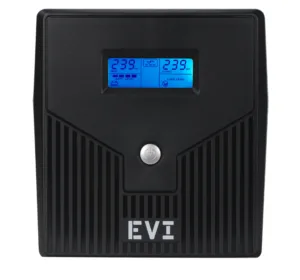

EVI 1100VA / 600W Line Interactive UPS
- Capacity: 1100VA / 600W
- Display: LCD screen with real-time power/battery updates
- Software: Monitoring & control software included
- Battery: Intelligent battery management system
- Functions: Cold Start, AVR (Boost & Buck)
- Outlets: 4 universal sockets
- Applications: Computers, routers, POS systems,
SKU: n/a
