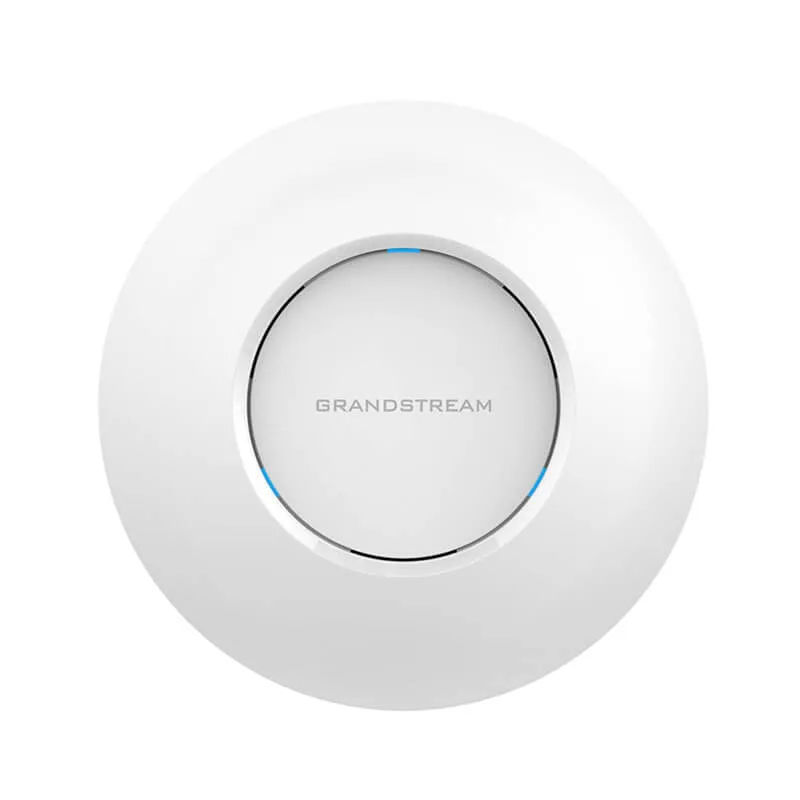

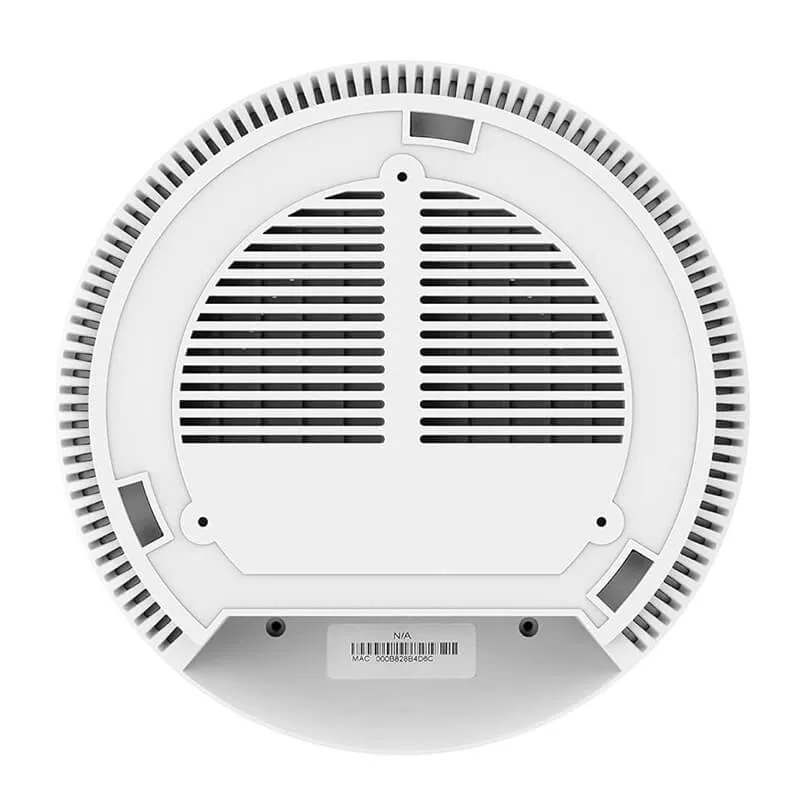

Grandstream GWN7630 Wireless Access Point

Availability:

In Stock


Key Features

  • 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
  • Dual-band 4×4:4 MU-MIMO technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports 200+ concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 20,500.00 KShs 25,000.00 VAT exc

In Stock

Buy Grandstream GWN7630 Wireless Access Point in Kenya

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN. Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium to-high user density

Grandstream GWN7630 Wireless Access Point Specs

Wi-Fi Standards:  IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas: 4 dual band internal antennas
2.4GHz, gain 4dBi
5 GHz, gain 5dBi
Wi-Fi Data Rates:  IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands: 2.4GHz radio: 2412 – 2484 MHz
5GHz radio: 5180 – 5825 MHz
Channel Bandwidth: 2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per device
MIMO: 4×4: 4 2.4G(MIMO)
4×4: 4 5G(MU-MIMO)
Coverage Range: Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power: 2.4G: 27 dBm
5G: 25 dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity: 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8;
802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs: 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients: 200+
Network Interfaces: 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
Mounting: Indoor wall mount or ceiling mount, kits included
LEDs: 3 tri-color LEDs for device tracking and status indication
Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS: 802.11e/WMM, VLAN, TOS
Network Management: Embedded controller can manage up to 50 local GWN Aps
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency: Support 802.3 az ;
POE 802.3af/ 802.3at;
Max Consumption: 16.5W
Environmental: Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical:  Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590g
Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 710g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 930g
Package Content: GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Compliance: FCC, CE, RCM, IC
