• 4× RJ45 Ports: 10/100/1000 Mbps (1× port WAN, 3× port LAN)
• Teltonika Remote Management System (RMS)
• Processor: MediaTek, Dual-core, 880 MHz, MIPS1004KC
• Digital Input/Output: For remote monitoring and control
• USB 2.0
• Operating System RutOS: Based on OpenWrt
• Multiple Secure VPN Services
• IP Rating: IP30
• Dimensions: 115 × 32,2 × 95,2 mm
• Weight: 359 g
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

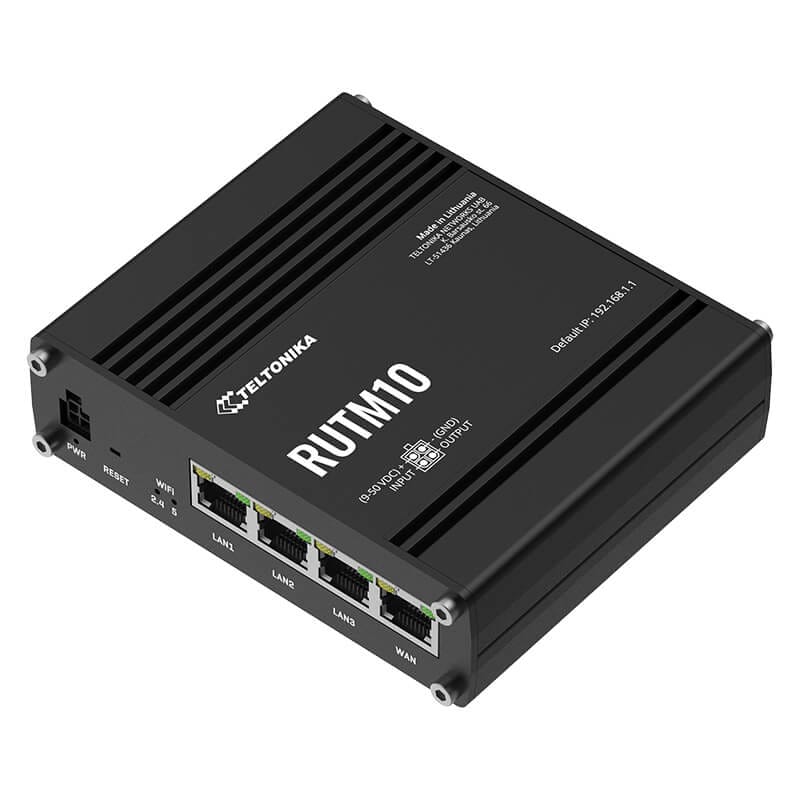

Buy Teltonika RUTM10 Industrial Wifi Router in Nairobi Kenya
The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.
Teltonika RUTM10 is an innovative router designed to meet the challenges of today’s home and industrial networks. The Teltonika RUTM10 industrial router provides a reliable connection that meets all security and stability requirements. With a wide range of features such as VPN, SSH and gigabit ethernet, the Teltonika RUTM10 is the ideal solution for managing a network with high security and data speeds.
Stable connection and support for modern protocols
The Teltonika RUTM10 router offers Wi-Fi 5 support with dual band, which means you can use both the 2.4 GHz and 5 GHz bands. Data speeds reach up to 867 Mbps, so you can enjoy high speed and stable connection. In addition, it supports tcp, udp, icmp, which ensures smooth operation of all connections.
High level of security
The RUTM10 router is equipped with advanced security features such as pre-shared key, x.509 certificates, and built-in random password generator. With support for ipsec, vpn, ssh, and radius, this router offers effective protection against network threats. In addition, time-based login blocking and login attempts block provide an extra level of security to keep your network protected from unauthorized access.
Flexible network management
With built-in dhcp, snmp, and mqtt functions, network management is quick and easy. The Teltonika RUTM10 also supports NAT and VRRP, which enables even distribution of network traffic and ensures automatic switching to a backup port in case of failure. A LAN with three gigabit ethernet ports allows you to connect several devices simultaneously, which is extremely useful in both home and office environments.
Comprehensive network functions and ease of use
Teltonika RUTM10 router has extensive support for vpn features such as OpenVPN, WireGuard, PPTP, L2TP and ipsec with NAT-T. With 802.3az standards and wake on lan (WOL), you can effectively manage power consumption. Wi-Fi mesh and fast roaming (802.11r) ensure that you can move seamlessly with your device around the house without losing connection
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP, USB
DLMS/COSEM
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP, USB
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Email
Receive email message status alerts of various services
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
