GNSS – Location services and time synchronisation for precise data reading (GPS)

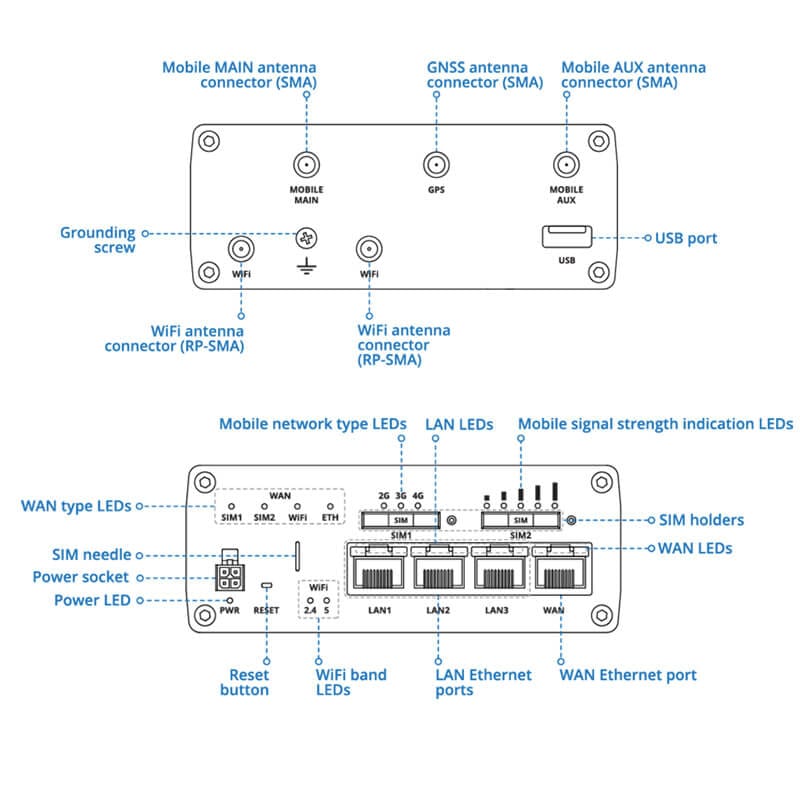

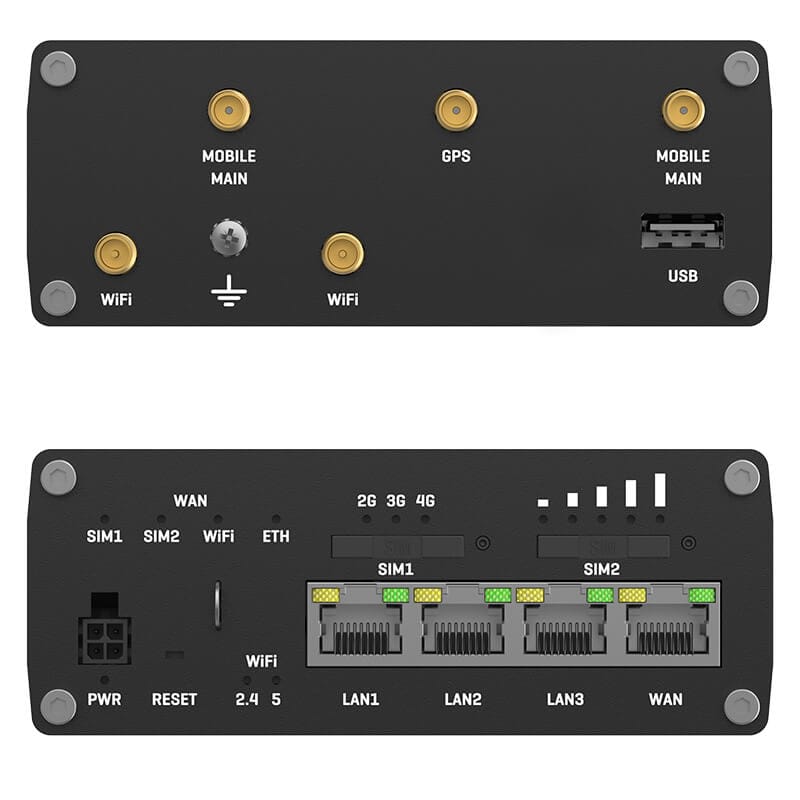

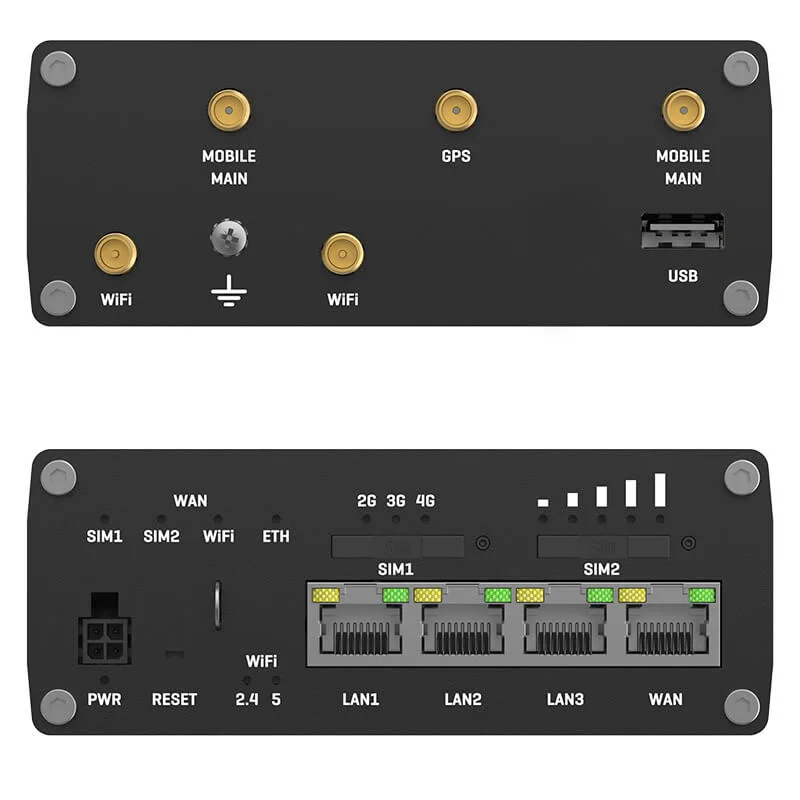

Antennas: 2 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS (GPS)
Ethernet – 4 x RJ45 ports, 10/100/1000 Mbps
4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
Compatible with Teltonika Remote Management System
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

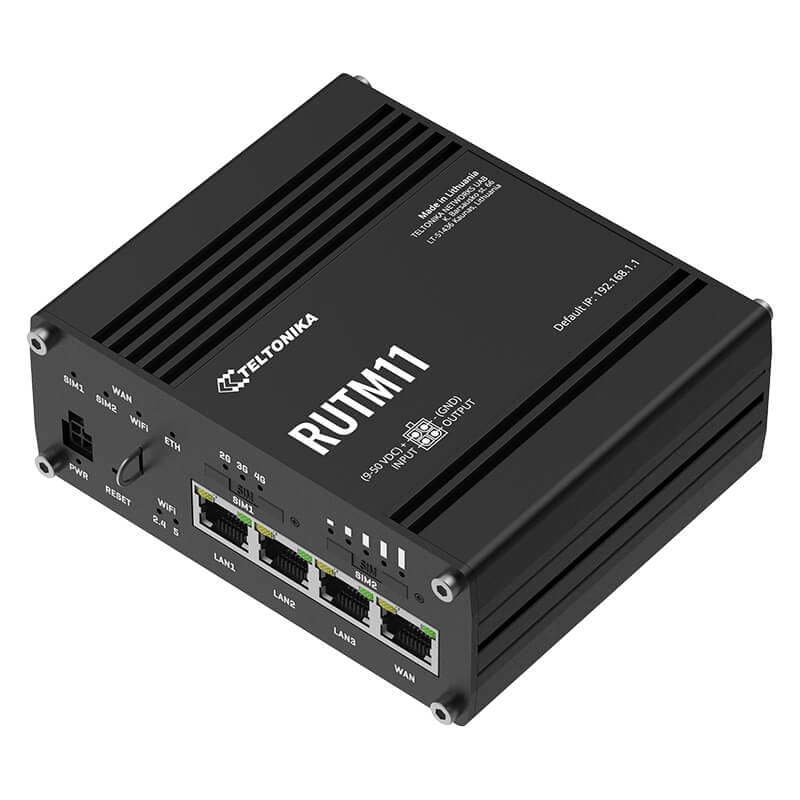

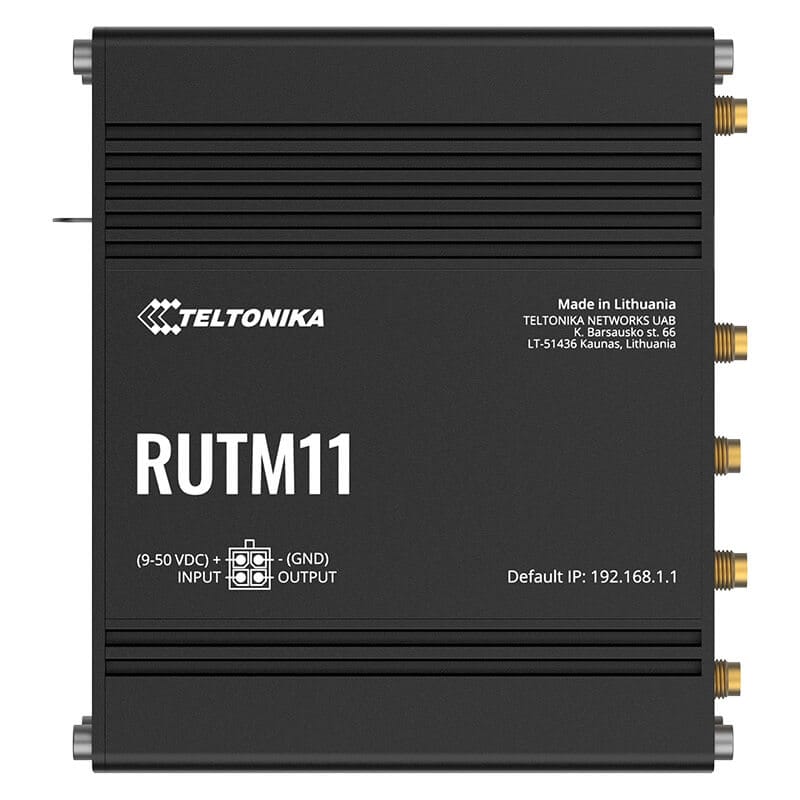

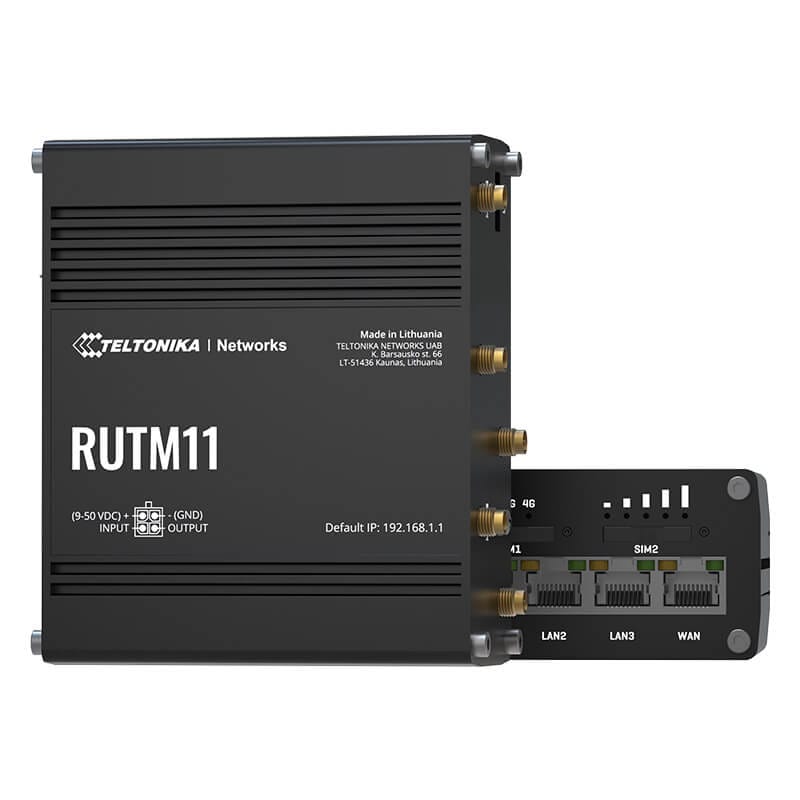

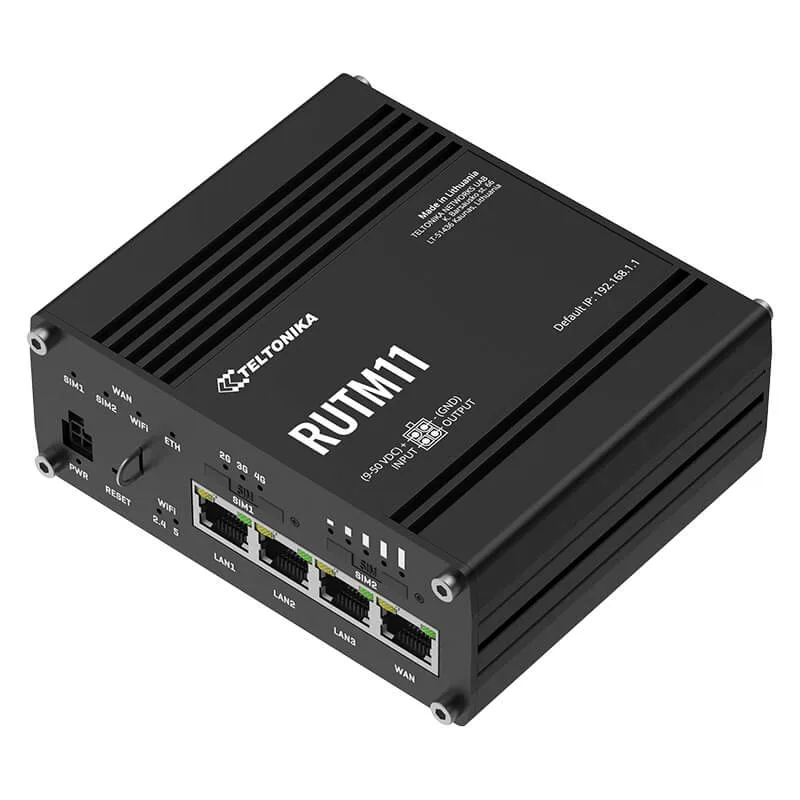

Buy Teltonika RUTM11 CAT6 LTE 4G Industrial Router with GPS in Nairobi Kenya
The Teltonika RUTM11 is an industrial LTE router designed specifically for applications requiring high data rates and reliable network connectivity, with no tolerance for delays or interruptions. This router features 4 Gigabit RJ45 ports, dual-band Wi-Fi, and dual SIM functionality, enabling multiple failover scenarios. Thanks to LTE Cat 6 technology, the RUTM11 achieves mobile speeds of up to 300 Mbps, which can be further increased with carrier aggregation.
The Teltonika RUTM11 industrial router is designed to deliver high-speed 4G LTE Cat 6 connectivity, supporting speeds of up to 300 Mbps. It is equipped with dual SIM capabilities, providing reliable internet with automatic failover to ensure continuous operation. This router is ideal for applications that require low latency and high data throughput, such as video surveillance or industrial automation. With LTE carrier aggregation, speeds can be further enhanced, making it a robust solution for demanding environments. The RUTM11 offers extensive networking capabilities, featuring 4 Gigabit RJ45 ports for fast wired connections and USB for additional flexibility. It supports up to 128 VLANs with tag/port-based segmentation, ensuring secure, efficient network management.
Key Benefits of the Teltonika RUTM11
Connectivity: Support for dual SIM and 4G LTE (Cat 6) with speeds up to 300 Mbps.
Interfaces: Equipped with four Gigabit RJ45 ports, USB, and support for up to 128 VLANs per port.
GNSS: Provides location services and time synchronization for accurate data processing.
Wi-Fi 5: Dual-band Wi-Fi with mesh networking and high-speed roaming capabilities.
GNSS and Wi-Fi Capabilities
This router supports dual-band Wi-Fi with both 2.4 GHz and 5 GHz frequencies, providing reliable wireless coverage in multiple environments. It features mesh networking and fast roaming functionalities, ensuring seamless connectivity when moving between access points. Additionally, GNSS location services and time synchronization provide precise positioning and real-time data accuracy, which are essential for various industrial and fleet tracking applications. The RUTM11 supports multiple advanced network security protocols, including VPN, firewall, and remote management capabilities. The Teltonika Remote Management System (RMS) allows for centralized control, real-time monitoring, and firmware updates, making it easier to manage large-scale deployments.
The Wi-Fi 802.11 ac (Wi-Fi 5) standard, the successor to Wi-Fi 4 (802.11n), offers significantly faster speeds through the use of multiple data streams. Whereas Wi-Fi 4 supported up to four data streams (4×4 MIMO), Wi-Fi 5 can handle up to eight data streams, providing improved performance and more capacity.
Teltonika RMS
Teltonika RMS software allows you to remotely connect to the RUTM11 to make settings or read out equipment, for example. This is particularly useful, especially if you manage multiple routers or cannot be physically present at the routers.
Rugged and Durable
Built to withstand harsh environments, the RUTM11 features a robust anodized aluminum casing with an IP30 ingress protection rating, protecting against dust and ensuring reliable operation in industrial settings. It is designed to function within a wide temperature range of -40°C to 75°C, making it suitable for various climates. The router can be mounted on a DIN rail, wall, or flat surface (additional kits required), offering versatile installation options in challenging environments such as factories, transportation hubs, and outdoor locations. With reliable performance in challenging environments and versatile mounting options, this router provides a dependable solution for industries requiring secure and continuous network connectivity.
4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release
Release 12
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SIM idle protection service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP, USB
DLMS
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP, USB
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
Email
Receive email message status alerts of various services
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
CPU
MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Location Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
