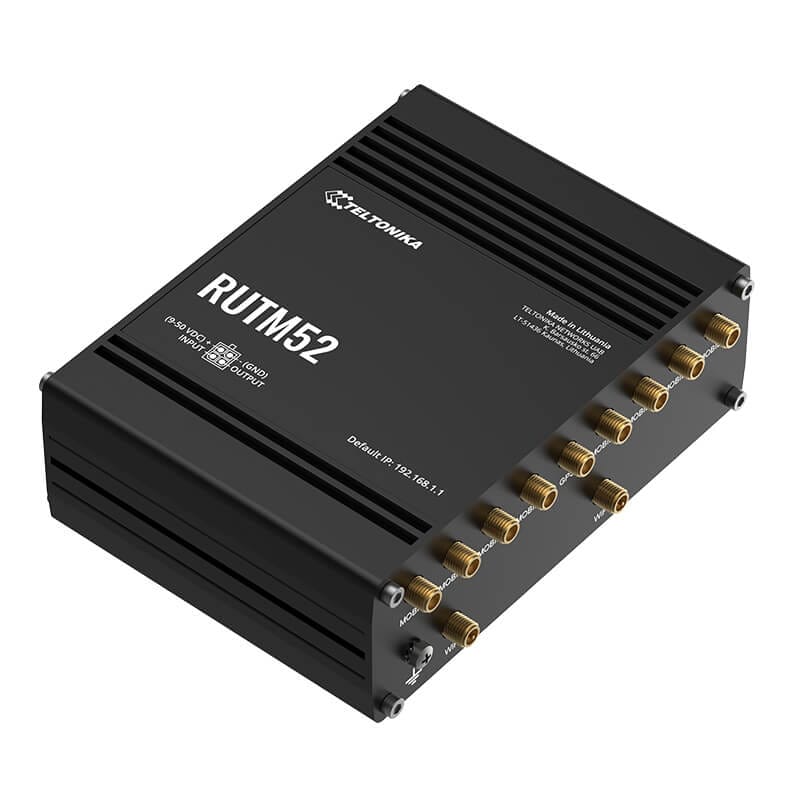

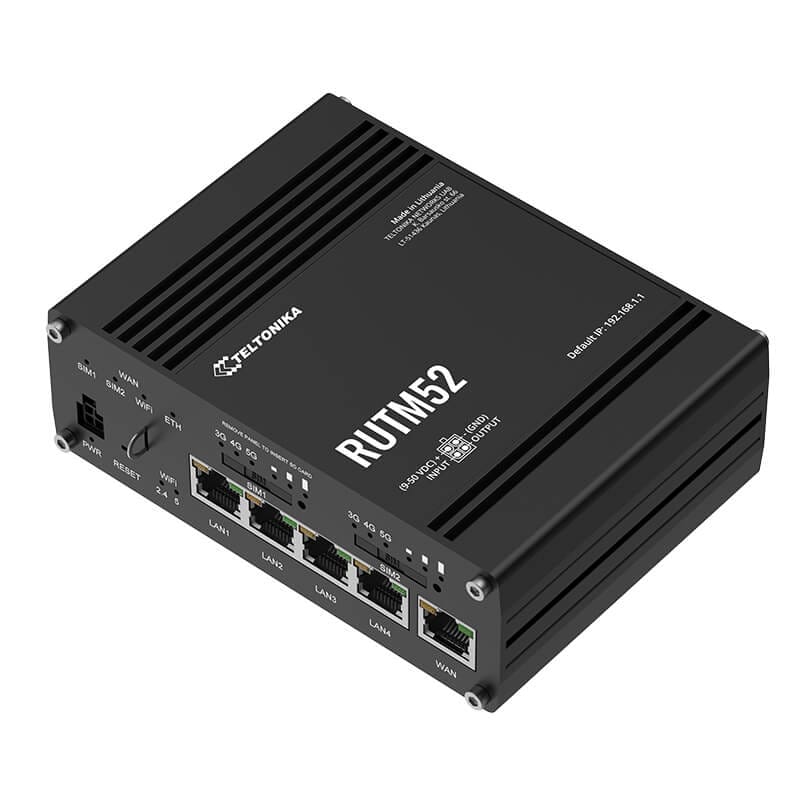

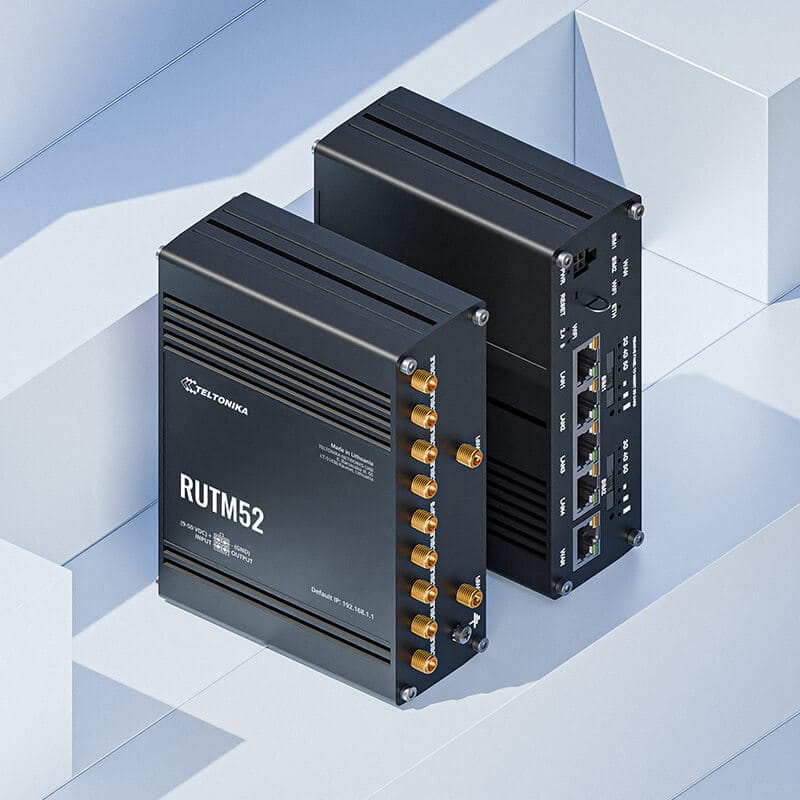

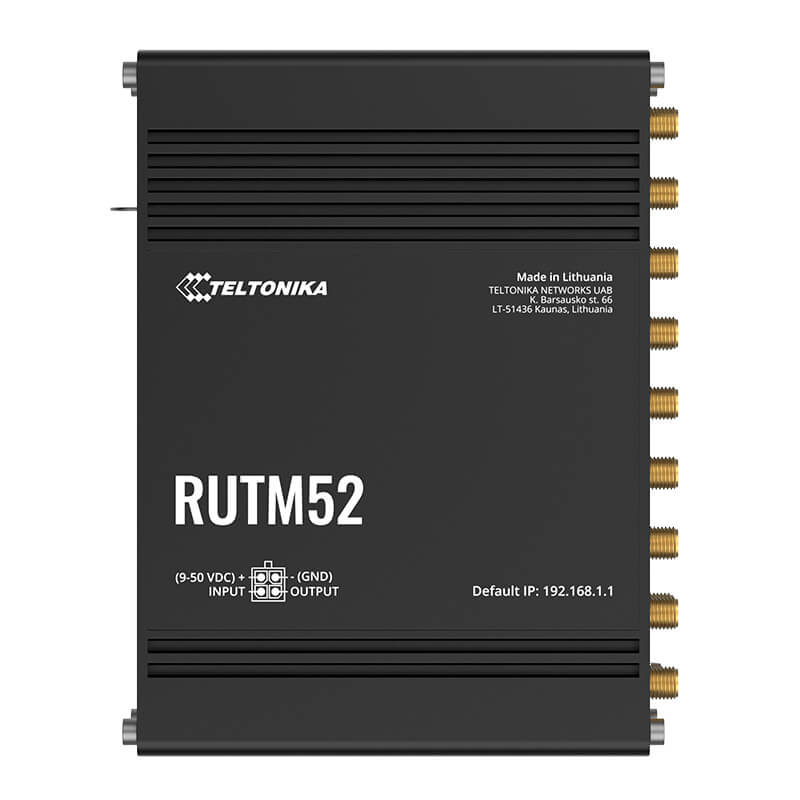

Teltonika RUTM52 Dual Modem 5G Industrial Router with Dual SIM and eSIM
Availability:
In Stock
Key features
Dual 5G Modems
4G LTE Cat20 fallback
Download speed up to 2x 3.3 Gbps
Load Balancing
Dual-Band Wi-Fi 5
Dual SIM and eSIM
Up to 7 eSIM profiles
5x Gigabit ports
11x antenna connectors
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice
Buy Teltonika RUTM52 Dual Modem 5G Industrial Router with Dual SIM and eSIM in Nairobi Kenya
Do you need reliable, Ultrafast 5G internet connection for your business?
With dual 5G modems, the RUTM52 delivers up to twice the speed of standard industrial routers, providing up to 2x 3.3Gbps download speed. In addition, the dual-modem router is backwards compatible with 4G LTE Cat 20, providing twice the 4G speeds as well. The RUTM52 also features Multi-Wan capabilities, Wi-Fi 5, GPS/GNSS and intelligent load balancing.
Dual SIM and eSIM – always in touch
The router supports Dual SIM with automatic switching in the event of a weak signal, reaching a data limit or no connection. Support for eSIM enables easy management of network profiles, which is especially convenient in mobile 5G environments. With this feature, the device ensures continuous connectivity, even in harsh environments.
Better connectivity with intelligent load balancing
The RUTM52 5G router takes connectivity further with advanced load balancing that distributes traffic across connections to ensure your network performs at its best. This load balancing feature maximises bandwidth efficiency, allowing your operations to take advantage of optimal speeds while avoiding overloading any single connection. With intelligent load balancing, your network adapts dynamically to provide a seamless, robust performance that keeps up with your application needs.
Wi-Fi 5 and Gigabit Ethernet for maximum performance
Integrated Wi-Fi 5 (802.11ac) allows speeds of up to 867 Mbps and support for up to 150 simultaneous connections, making it ideal for high-volume environments. 5 Gigabit Ethernet ports (1 WAN and 4 LAN) provide high-speed wired connections for devices requiring stability and performance. This configuration allows you to create a versatile network for both home and business.
Always connected to a network with Dual SIM and eSIM
The Teltonika RUTM52 comes with Dual SIM slots and an integrated eSIM. Use two physical mini SIM cards, two eSIMs or a combination of both. Each eSIM supports up to seven profiles, enabling easy switching between providers. The RUTM52 features auto-failover and instant SIM and eSIM switchover. This ensures a continuous reliable connection.
The dual 5G RUTM52 is equipped with five Gigabit Ethernet ports (4x LAN and 1x WAN) providing stable and high data throughput for wired connections. The robust router also has 11 Antenna connectors (8x Mobile, 2x Wi-Fi, 1x GPS) for connecting an external antenna. With an external antenna, it is possible to boost a signal in areas where the signal is weak.
Advanced security features
The Teltonika RUTM52 is designed with security in mind. It supports WPA3-SAE, AES-CCMP, SSH attack prevention and port scan prevention, which protects the network from cyber threats. The router also offers support for VPNs such as OpenVPN, WireGuard and IPsec, making it ideal for remote workers and businesses requiring data protection.
Remote management
RUTM52 is managable with the Teltonika Remote Management System (RMS), for optimized remote management, deployments and monitoring capabilities of large fleets of devices. With the Teltonika Remote Management System you manage Teltonika routers remotely. Certainly when larger numbers of routers are involved, this system is highly recommended for efficiency reasons. More information: Teltonika Remote Management System
Packed with high-performance features such as dual 5G modems, multi-WAN capabilities, instant SIM and eSIM switch and advanced load balancing, the RUTM52 mobile router delivers unstoppable connectivity for any situation, making it ideal for use in high-demand environments such as media and entertainment, smart cities, healthcare, transportation, logistics, agriculture, and manufacturing.
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch
Allows dual-modem functionality with independent SIM switching for each modem. The SIM switch automatically transitions between the physical SIM and eSIM based on conditions such as weak signal, data limits, roaming, and network issues. Both physical SIMs can operate simultaneously, with switching restricted to each modem’s SIM and eSIM
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Framed routing
Framed routing: support an IP network behind 5G UE
Wireless
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
DNP3 Station, DNP3 Outstation
Supported connection
TCP
DLMS
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email
Receive email message status alerts of various services
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Location Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software
Supported server software TAVL, RMS
Geofencing
Configurable multiple geofence zones
Input / Output
Input
1 x Digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 50 V, 300 mA
Events
Email, RMS, SMS
I/O juggler
Allows to set certain I/O conditions to initiate event
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC
Power consumption
Idle: < 5 W, Max: < 13 W

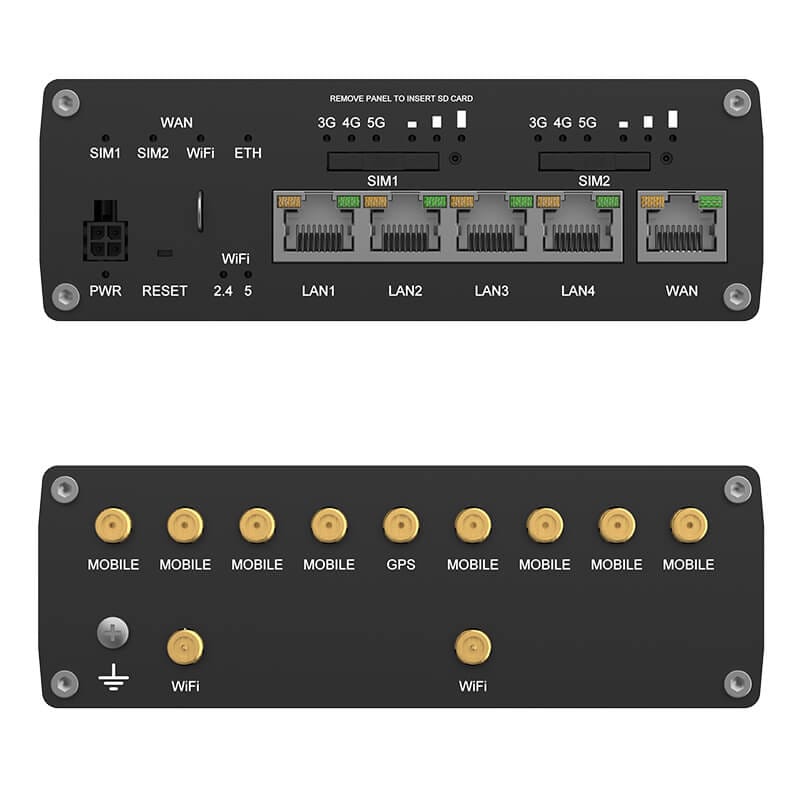

Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power
1 x 4-pin power connector
Antennas
8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
Reset
Reboot/User default reset/Factory reset button
Other
1 x Grounding screw
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
132 x 44.2 x 95.1 mm
Weight
560 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
