Teltonika RUTX12 Dual LTE 4G CAT6 dual-band Industrial Router with GPS and Bluetooth
Availability:
In Stock
Key Features:
• 2x LTE Cat. 6 with speeds up to 300 Mbps
• Wave-2 802.11ac Dual-Band Wi-Fi at up to 867 Mbps
• 5x Gigabit Ethernet with a speed of up to 1000 Mbps
• Ability to configure multiple WAN failovers.
• Dual-SIM with automatic switching between networks in case of failure, backup WAN connection and other SW functions
• Compatible with RMS – Teltonika Remote Management System
• Quad-core CPU – ARM Cortex A7 CPU, 717 MHz
• Memory: 256 MB SPI Flash, 256 MB DDR3 RAM
• RutOS – secure operating system, easy to use
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice
Buy Teltonika RUTX12 Dual LTE 4G CAT6 dual-band Industrial Router with GPS and Bluetooth in Nairobi Kenya
RUTX12 is a robust industrial LTE Advanced (LTE-A) router equipped with Load Balancing via two LTE modems, Dual-SIM, 5x Gigabit Ethernet ports, WiFi, GPS, Bluetooth, a powerful CPU and RutOS software for advanced networking solutions. Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature. Packed with advanced security features like VPN, IPsec, PPTP, L2TP, Stunnel and GNSS tracking. RUTX12 is the most powerful Dual LTE Cat 6 router in the portfolio of Teltonika.
The Teltonika RUTX12 has provided a huge step forward and a solid position in the market of dual modem solutions. The Teltonika RUTX12 is the first 4G router from Teltonika to operate with two active LTE modems, which provides a huge advantage over a dual-SIM router. The Teltonika RUTX12 is capable of 4G WAN bonding and 4G failover.
The industrial IoT router Teltonika RUTX12 guarantees high performance with a wide range of operating temperatures. The entire aluminium construction ensures proper durability. Thanks to these features, the router becomes suitable for installation in demanding conditions. It is equipped with two SIM slots, 5x Gigabit Ethernet ports, DualBand 802.11 AC WiFi, Bluetooth LE and USB interface. Two simultaneously working LTE CAT 6 modems can provide speeds of up to 600 Mbps with data load balancing. An integrated GPS receiver provides router location information. Thanks to the BLE function, the router Teltonika RUTX12 is compatible with a number of BLE sensors, which can be used to sense quantities such as temperature, humidity, vibration and, for example, the position of BT beacons.
The acquired data can then be sent to your cloud server or other IoT platform via the MQTT protocol. The Teltonika RUTX12 router is ideal for advanced industrial and business applications. The Teltonika RUTX12 comes with all RutOS software and security features.
Teltonika RUTX12 industrial 4G router
Teltonika’s RUTX12 industrial 4G router is designed for mission-critical applications in industry. With multiple connections, load-balancing feature, and dual SIM capabilities, download speeds of up to 600Mbps are possible. This enables failover and fallback, among other things. We briefly tell you about the features of this Teltonika router below
Features Teltonika RUTX12
Connectors

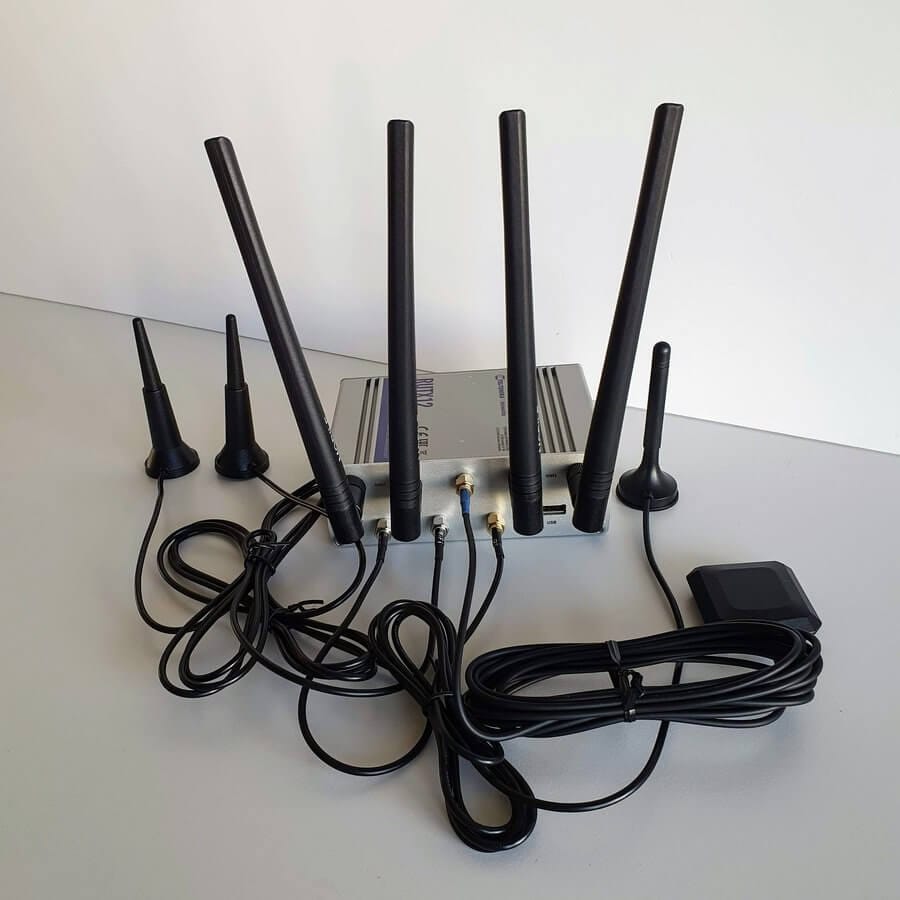

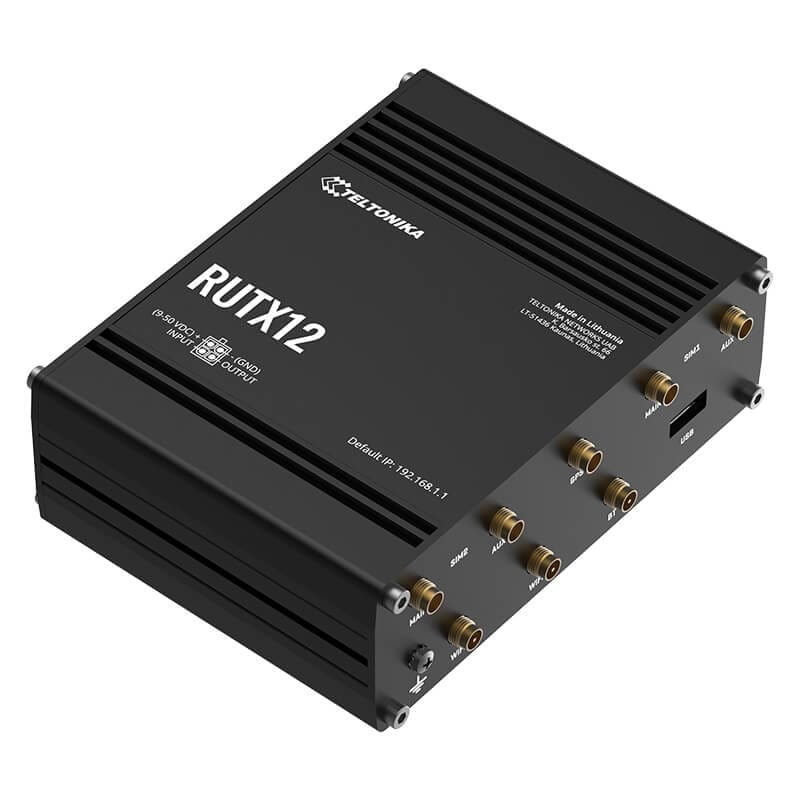

The router features inputs for 4 LTE antennas, 2 Wi-Fi antennas, 1 GNSS antenna, 1 Bluetooth antenna, 5 Ethernet ports, and 1 USB port.
Wi-Fi and Bluetooth
The RUTX12 has Bluetooth LE and Wave-2 802.ac Dual Band Wi-Fi.
Load Balancing RUTX12
Thanks to the dual modem functionality of the Teltonika RUTX12, this Teltonika 4G dual modem router allows traffic to be shared between both 4G modems. For example, one can choose to specifically route all business traffic (VoIP, cloud services etc) within an enterprise over modem A and all other data streams (WiFi guest network, private data employees) over the other modem (B). This ensures that business (critical) data is always kept separate from other data streams and that data throughput has as much uptime as possible.
Security features
In addition to the dual modem, the Teltonika RUTX12 also features several options for secure setup;
built-in firewall that can be configured
Built-in filter for white- and black listing of Internet pages
2 x 4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release
Release 12
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SIM idle protection service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP, USB
DLMS
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP, USB
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB, DDR3
FLASH storage
256 MB, SPI Flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Location Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA
NMEA 0183
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events
Email, RMS, SMS
I/O juggler
Allows to set certain I/O conditions to initiate event
Power
Connector
4-pin industrial DC power socket
Input voltage range
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)
Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC
Power consumption
Idle: < 4 W, Max: < 22 W
Physical Interfaces
Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs
4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
