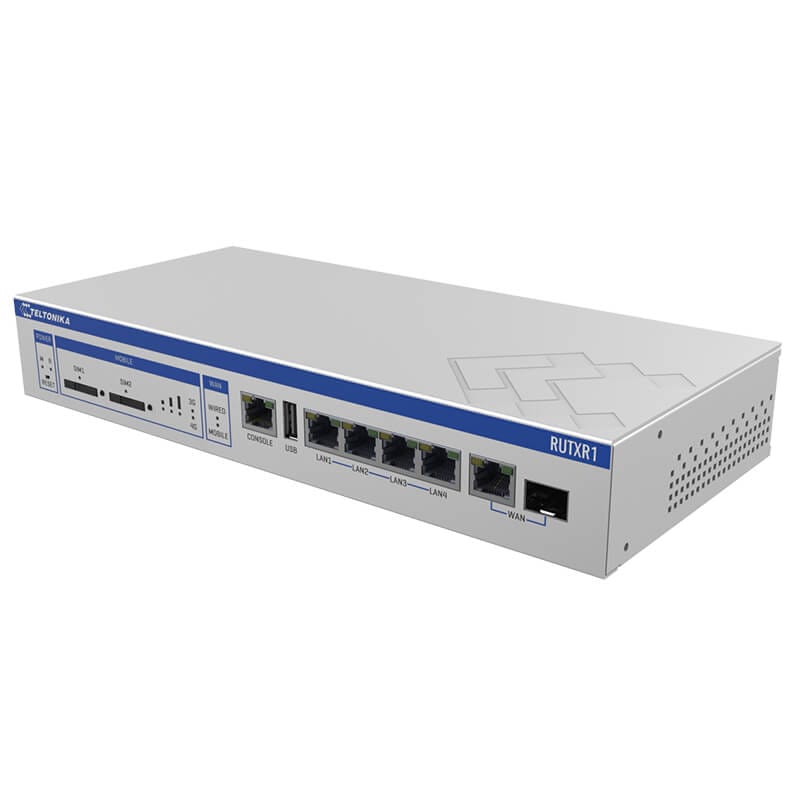

Teltonika RUTXR1 Enterprice Rack-mountable SFP/LTE Router with Dual SIM
Availability:
In Stock
Key Features
Cat6 LTE Router with speeds up to 300Mbps
Dual-SIM with auto Failover, Backup WAN and other SW features
Rack Mountable
SFP port for long-range Fiber-optic communication
5 x Gigabit Ethernet Ports
Teltonika Remote Management System compatible
VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system
Easy to use, secure and feature rich OpenWrt based Operating System.
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice
Buy Teltonika RUTXR1 Enterprise Rack-mountable SFP/LTE Router with Dual SIM in Nairobi Kenya

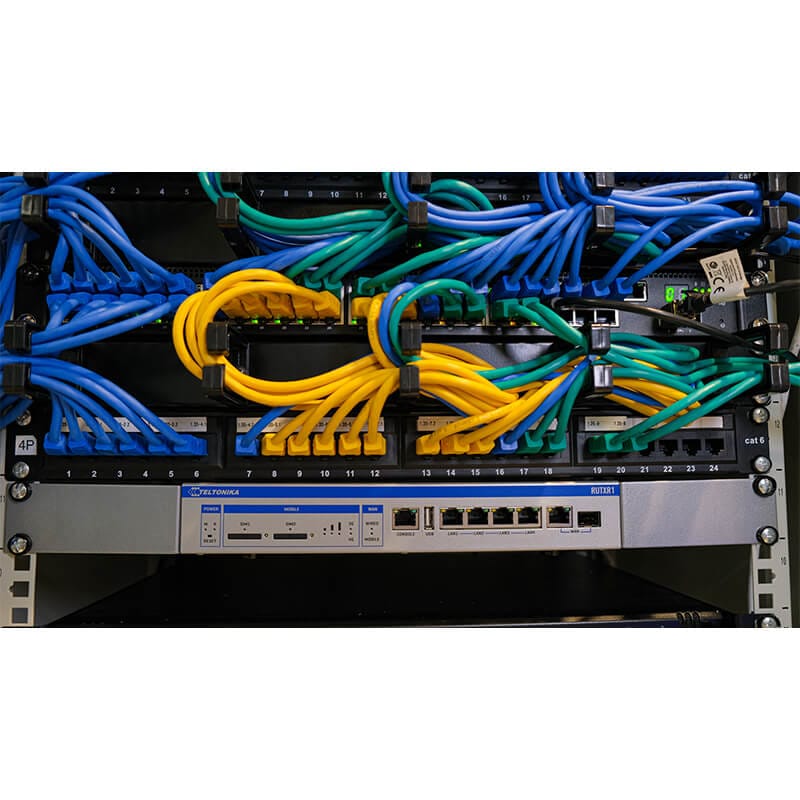

RUTXR1 is Teltonika’s rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.
This router is in an all-metal design, its advantages include, for example, the possibility of mounting in a server rack, which Teltonika has not yet offered for its existing devices. This router is ideal for industrial and corporate applications.
The LTE 4G router Teltonika RUTXR1 enables Internet connection using LTE Cat 6 mobile technology, which supports speeds up to 300 Mbps, in combination with ETH WAN or SFP WAN. The big advantage is the possibility of using the Dual-SIM function. This feature allows backup in the event of a failure of one of your Internet Service Providers (ISPs).

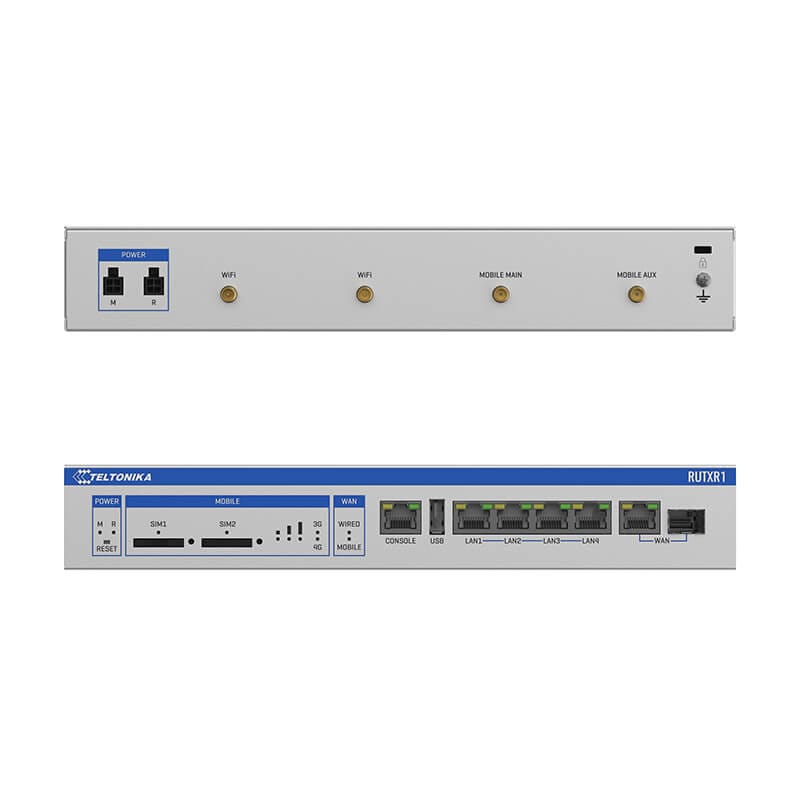

The device Teltonika RUTXR1 also has 5x 1000 Mbps Ethernet ports with WAN capability. The connection of 1000 Mbps also allows the SFP port, which, however, cannot be combined with the WAN port.Teltonika RUTXR1 is also equipped with a USB port, a serial line RS232 with an RJ45 port, through which the device can be controlled. Of course, there is also the possibility of wireless connection using the 802.11ac standard, known as WiFi 5 with MU-MIMO support, this standard operates in the 2.4 and 5 GHz bands and provides a maximum speed of up to 867 Mb / s. A novelty is also the possibility of using dual power supply, which allows power backup in the form of, for example, a backup battery.

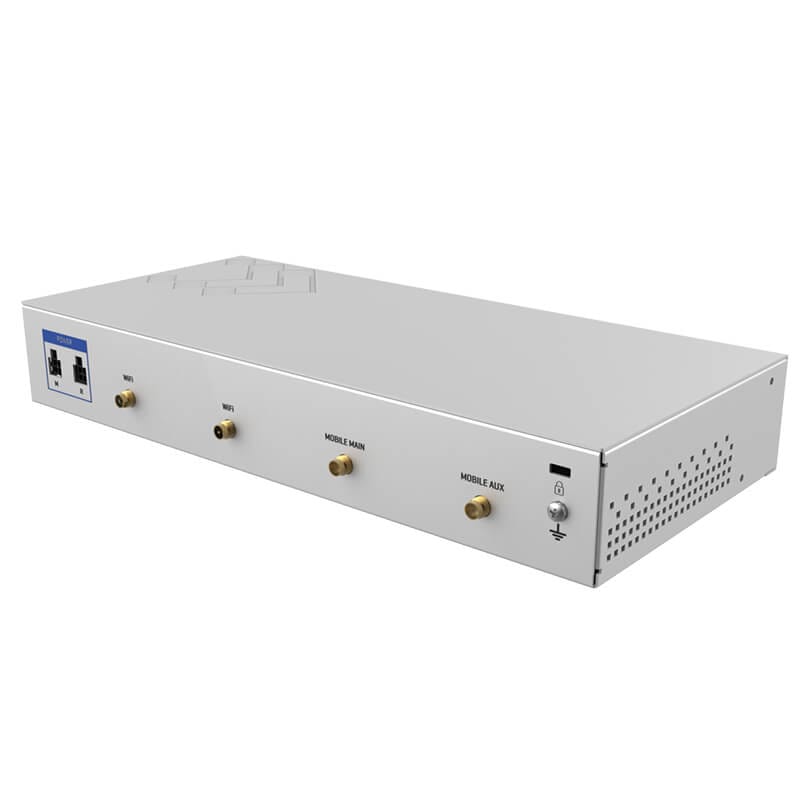

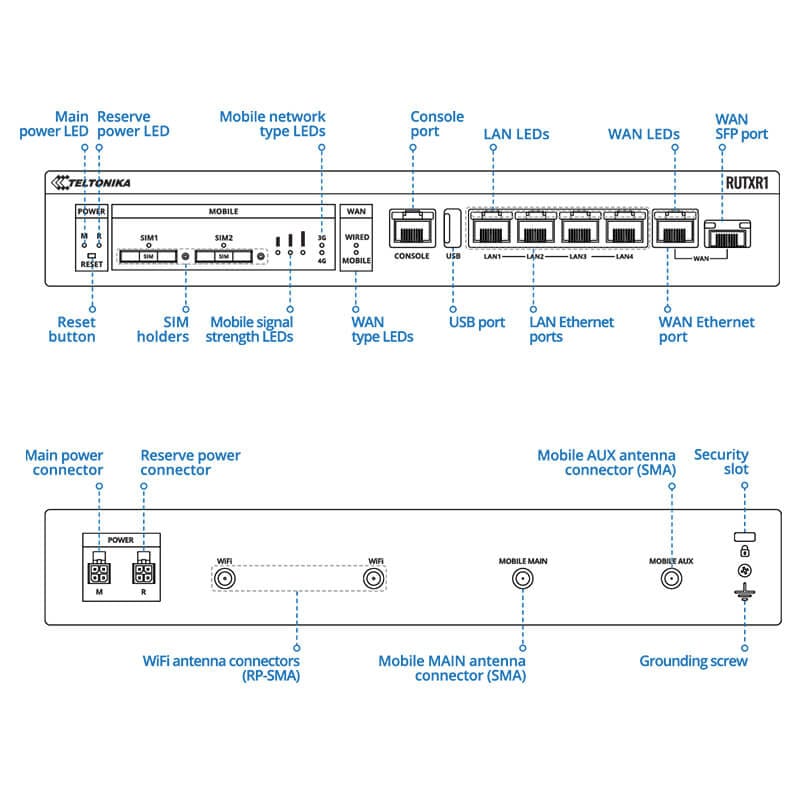

LTE 4G router Teltonika RUTXR1 is powered by a powerful quad-core ARM Cortex A7 processor, clocked at 717 MHz, which in combination with 256 MB DDR3 + 256 MB SPI Flash memory and the RutOS operating system based on OpenWrt – Linux offers sufficient performance for all applications. In terms of connector equipment, there are 2x SMA (LTE), 2x RP-SMA (Wi-Fi) connectors.
An example of the use of this device may be a situation where the customer still requires an Internet connection with a backup in the event of an Internet outage. In the case of an optical connection, it is sufficient to use the SFP port without the need for additional devices. Using WiFi or Ethernet ports, the customer has the option of connecting a number of devices. If the operation department needs, for example, various company departments, it also has the option of using a VLAN. It can take care of remote management using RMS, or use a serial line for configuration.
This router has many features and capabilities such as;
Auto switch from modem to sim card when signal is weak
Load balancing
When reaching the limit of SIM card 1, switching to SIM card 2, or to the fixed line.
4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release
Release 11
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SIM idle protection service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless
Wireless mode
802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
Wi-Fi WAN, Mobile, Fiber, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP, USB
DLMS
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP, USB
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Email
Receive email message status alerts of various services
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
CPU
Quad-core ARM Cortex A7, 717 MHz
RAM
256 MB, DDR3
FLASH storage
256 MB, SPI Flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Location Tracking
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
