APC Smart-UPS C 1000VA LCD 230V with SmartConnect (SMC1000IC)

APC Brand Kenya
Availability:

In Stock


Key Features

  • Intelligent and efficient network power protection from entry level to scaleable runtime.
  • Ideal UPS for servers, point-of-sale, routers, switches, hubs and other
  • Includes: Power Cords, USB cable
  • Output: 600W / 1000 VA

Click to See Manufacturer Specifications here

Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

APC Smart-UPS C 1000VA LCD 230V with SmartConnect (SMC1000IC) Features

Output power capacity: 600Watts / 1.0kVA

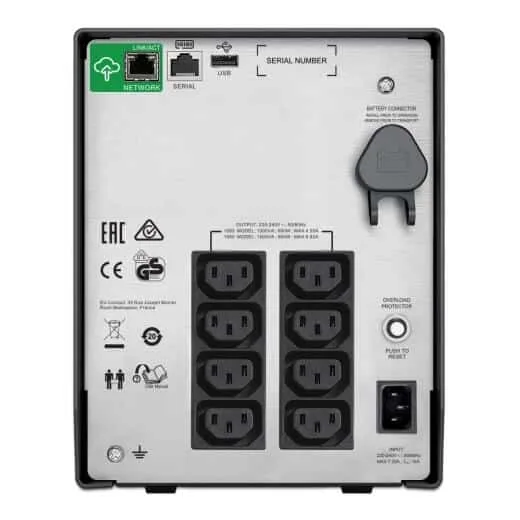

Output Connections: (8) IEC 320 C13 (Battery Backup),(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC-320 C14

APC Smart-UPS C 1000VA LCD 230V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Power Cords, USB cable

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • LCD Status Display
    Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Manageability

LED status indicators
Quickly understand unit and power status with visual indicators.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial connectivity
Provides management of the UPS via a serial port.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
Disconnected battery notification
Warns when a battery is not available to provide backup power

Availability

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Adaptability

Adjustable voltage sensitivity
rovides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Serviceability

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers
Enables a quick recovery from overload events.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Marketing Features

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Smarter productivity  with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Safety

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Brand

Technical Specifications

Output
Max Configurable Power (Watts)               600Watts / 1.0kVA
Output Voltage Distortion                            Less than 5%
Output Frequency (sync to mains)              50/60Hz +/- 3 Hz
Other Output Voltages                                 220, 240
Topology                                                         Line Interactive
Waveform type                                              Sine wave
Transfer Time                                                6ms typical : 10ms maximum
Input
Input frequency                                                                             50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations                                     180 – 287V
Input voltage adjustable range for mains operation                   170 – 300V
Other Input Voltages                                                                      220, 240
Batteries & Runtime
Battery type             Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time          3hour(s)
Replacement Battery            APCRBC142
Expected Battery Life (years)                3 – 5
RBC Quantity                1
Battery Charge Power (Watts)               72Watts
Battery Volt-Amp-Hour Capacity          216
Communications & Management
Interface Port(s)                    RJ-45 Serial, USB
Control panel                         Multi-function LCD status and control console
Audible Alarm                       Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating                455Joules
Filtering          Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height                        219MM, 21.9CM
Maximum Width                         171MM, 17.1CM
Maximum Depth                          439MM, 43.9CM
Net Weight                                    17.27KG
Shipping weight                            19.55KG
Shipping Height                            376MM, 37.6CM
Shipping Width                             328MM, 32.8CM
Shipping Depth                              595MM, 59.5CM
Color                                               Black
Master Carton Units                     1.0
Units per Pallet                              18.0
Environmental
Operating Temperature                 0 – 40 °C
Operating Relative Humidity        0 – 95 %
Operating Elevation                        0-3000meters
Storage Temperature                     -15 – 45 °C
Storage Relative Humidity             0 – 95 %
Storage Elevation               0-15000meters
Audible noise at 1 meter from surface of unit              41.0dBA
Online thermal dissipation                           100.0BTU/hr
