Switching Capacity – 16 Gbps with 11.9 Mpps forwarding rate
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

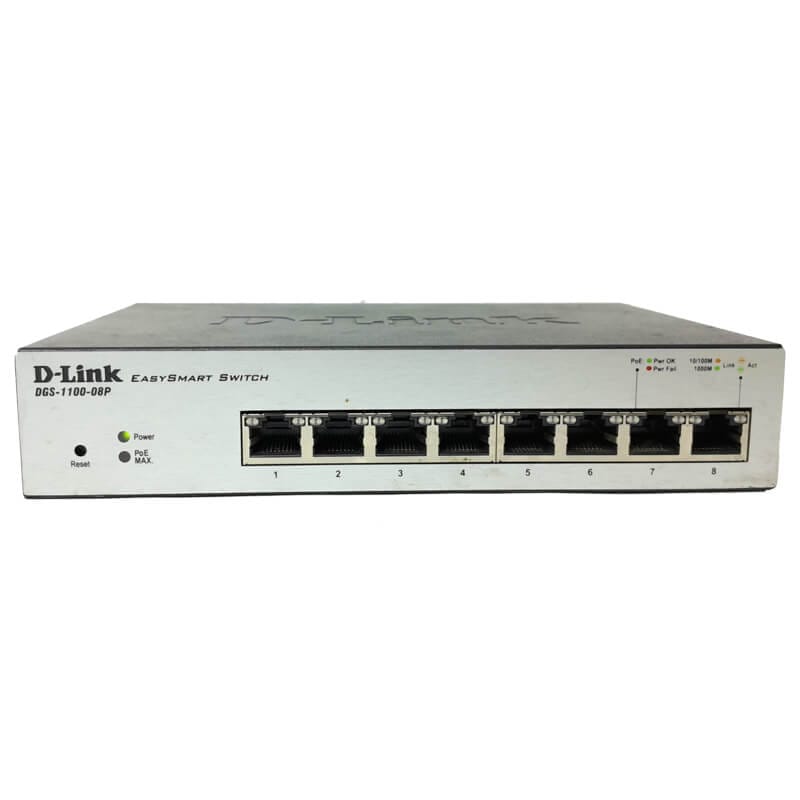

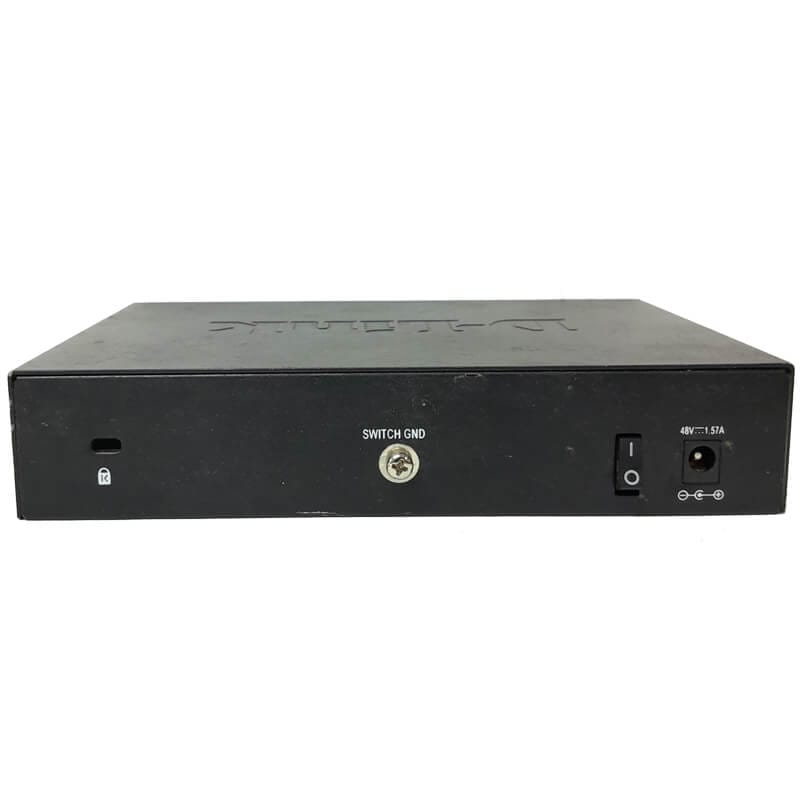

The DGS-1100-08P offers eight 10/100/1000 Mbps ports with PoE technology. Switch management can be performed through a web management interface or through the SmartConsole Utility. A fanless design allows for quieter operation and provides a longer product life. The DGS-1100-08P provides an affordable solution for Small and Medium Business, and for communities without IT staff. They are also suitable for enterprise deployment, such as in branch offices and meeting rooms that require simple network management.
Surveillance VLAN and Bandwidth Control
The DGS-1100-08P supports Surveillance VLAN, which is best suited for video surveillance deployment. Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a single DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might have high priority.
PoE Support
The DGS-1100-08P delivers Power over Ethernet (PoE) capabilities, making deployment with IP cameras, VoIP phones, and access points much easier. Power cords will become a thing of the past, as the DGS-1100-08P complies with the 802.3af standard for PoE and supports a 64 Watt power budget. The 10/100/1000Base-T Ethernet ports mean that even high-quality video is no problem.
Easy to deploy
The DGS-1100 Smart Managed Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
Easy Troubleshooting
Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.
Hardware Version
• Rev A (DGS-1100-05, DGS-1100-08, DGS-1100-08P)
Number of Ports
• 8 x 10/100/1000 (DGS-1100-08 & DGS-1100-08P)
Port Standard & Functions
• IEEE 802.3, 802.3u, 802.3ab compliant
• IEEE 802.3x Flow Control
• IEEE 802.3az EEE compliant
• 802.3af (DGS-1100-08P)
• Half/Full-duplex operation at 10/100Mbps
• Full-duplex operation at 1000Mbps
• Auto-Negotiation for each port
• Auto MDI/MDIX
L2 Features
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
• IGMPv1/v2 Snooping
• Supports 32 Groups (DGS-1100-05/-08/-08P)
• 802.3ad Link Aggregation
• 2 groups, 2-4 ports per group (DGS-1100-08/-08P)
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
• One-to-One
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
QoS
• 802.1p Quality of Service
• 4 queues per port (DGS-1100-05/-08/-08P/-16/-24/-24P)
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• DGS-1100-05/-08/-08P
• Port Based
• Ingress: minimum granularity 8 Kbps
• Egress: minimum granularity 8 Kbps
• Static MAC Address
• Max. 32 entries (DGS-1100-05/-08/-08P)
