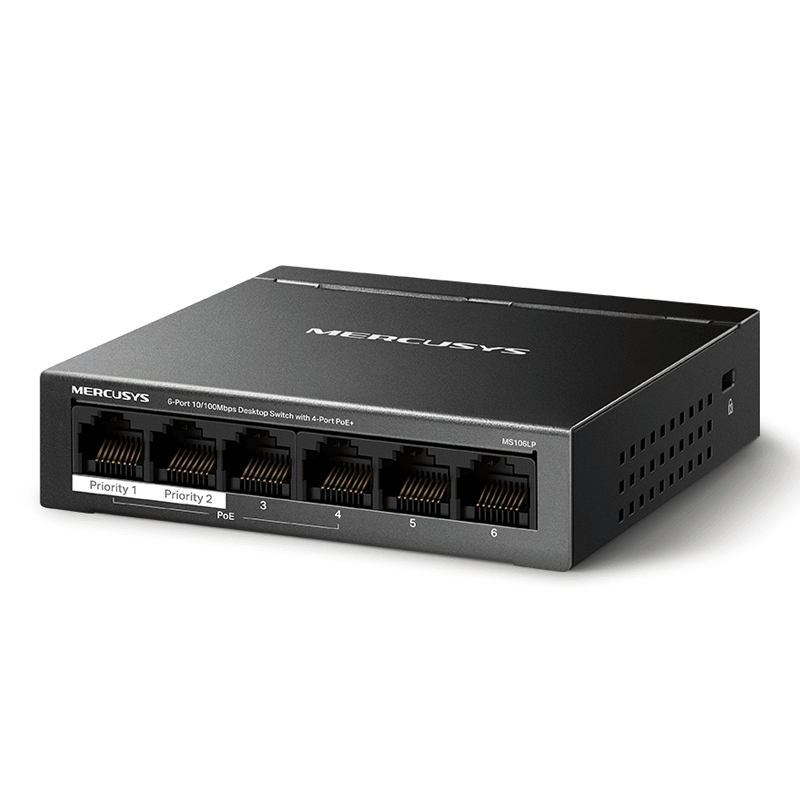

MERCUSYS 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ -TL-MS106LP

Shop for MERCUSYS 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ -TL-MS106LP in Nairobi, Kenya

Looking for an affordable and reliable PoE network switch in Kenya for CCTV cameras, wireless access points or office networking? The MERCUSYS TL-MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ is a compact networking solution designed to simplify the installation of wired network devices while reducing the need for separate power adapters.

Featuring six Fast Ethernet ports, four PoE+ ports, a total PoE power budget of 40W and convenient plug-and-play operation, the TL-MS106LP is ideal for small businesses, shops, offices, homes and security camera installations. Its metal casing, fanless operation and practical network management features make it a useful choice for customers who need dependable connectivity without a complicated setup.

Whether you are installing IP security cameras, connecting a compatible Wi-Fi access point or expanding your small office network, the MERCUSYS TL-MS106LP helps deliver both data and power over a single Ethernet cable to supported PoE devices.

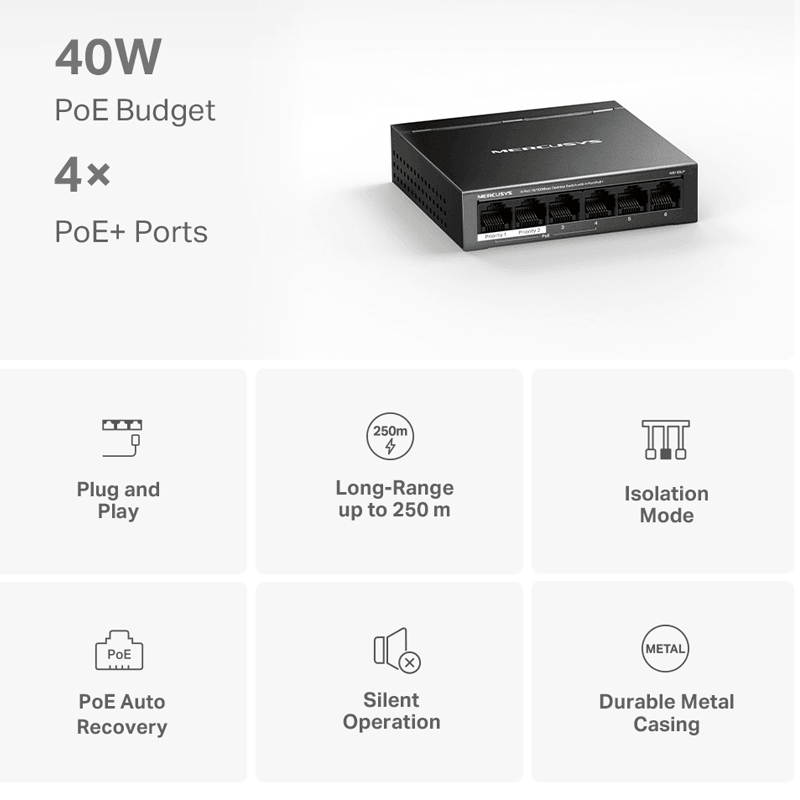

Key Features of the MERCUSYS TL-MS106LP

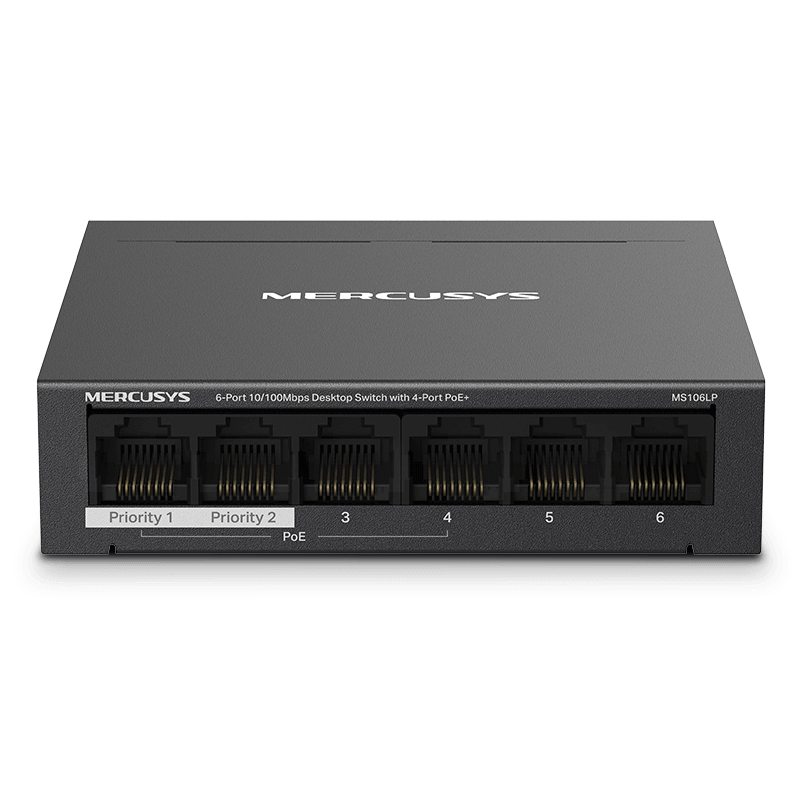

• 6 × 10/100Mbps Ethernet ports: Connect network devices using six RJ45 Fast Ethernet ports.
• 4 PoE+ ports: Ports 1–4 supply both data and power to compatible PoE devices through one Ethernet cable.
• 40W total PoE power budget: Supports up to 30W per PoE port, subject to the overall 40W power budget and connected-device requirements.
• Extended PoE transmission: Extend Mode supports transmission distances of up to 250 metres on supported PoE ports under suitable conditions.

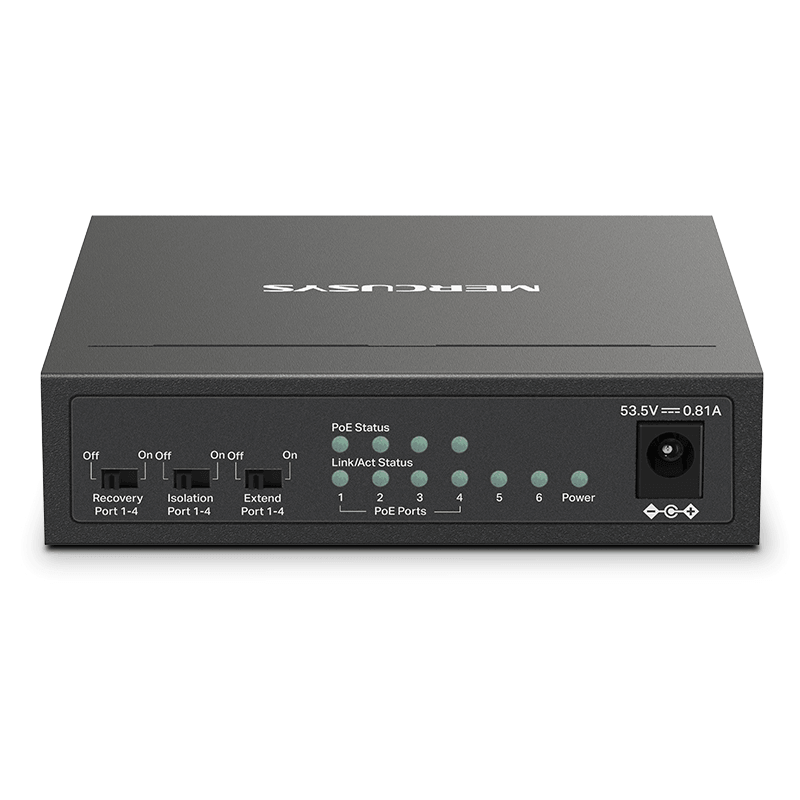

• Isolation Mode: Helps separate traffic between selected ports to improve network isolation and stability.
• Priority Mode: Helps prioritise traffic on designated ports for supported network deployments.
• PoE Auto Recovery: Automatically detects and reboots certain unresponsive PoE-powered devices.
• Plug-and-play installation: Automatic negotiation and Auto MDI/MDIX simplify setup without requiring complex configuration.
• Durable metal casing: Helps dissipate heat and withstand normal day-to-day use.
• Silent, fanless operation: Suitable for offices, shops and other environments where fan noise is undesirable.
• Desktop or wall mounting: Offers flexible placement in a compatible installation.

Why Buy the MERCUSYS TL-MS106LP PoE Switch in Kenya?

1. Power CCTV Cameras Without Separate Power Adapters

The MERCUSYS TL-MS106LP is an excellent option for small CCTV and IP surveillance installations. Its four PoE+ ports can supply power and network connectivity to compatible IP cameras over a single Ethernet cable.

This can simplify installation, reduce cable clutter and make it easier to position cameras where they are needed.

Suitable applications include:

• Home CCTV systems
• Shop and retail security
• Small office surveillance
• School and classroom monitoring
• Reception areas and business premises
• Small commercial security installations

Important: The switch has a total PoE budget of 40W. Check the power consumption of your cameras and other connected devices to ensure the combined load stays within the available budget.

2. Connect Wireless Access Points and IP Phones

In addition to security cameras, the TL-MS106LP can power compatible PoE wireless access points and IP phones. This makes it useful for small businesses looking to connect several networking devices through one compact switch.

For example, you can use it to connect compatible PoE cameras, a wireless access point and other wired network equipment, provided you stay within the switch’s port and power limits.

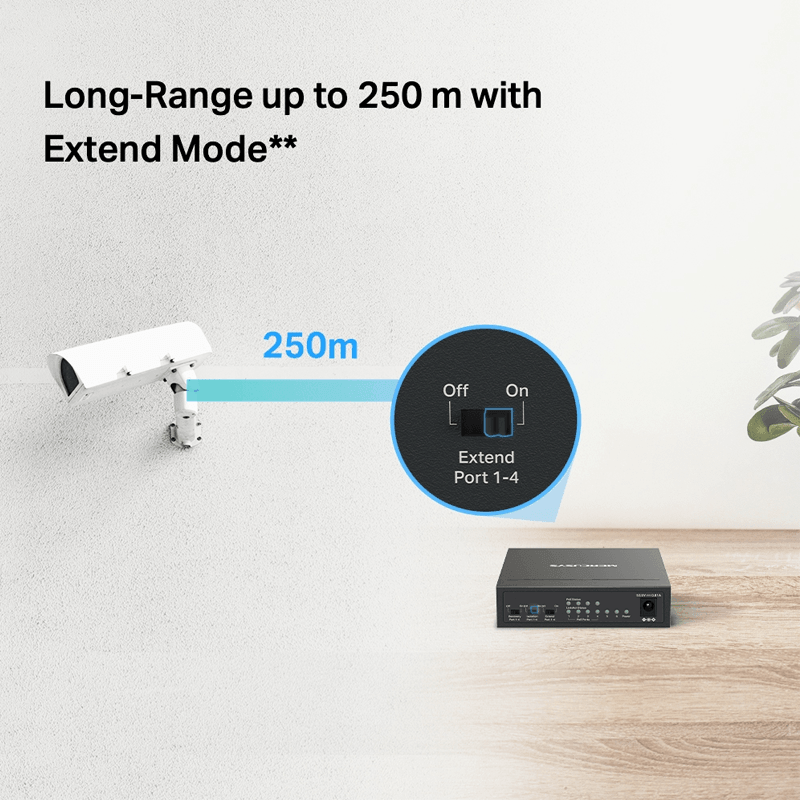

3. Extend PoE Connections up to 250 Metres

When enabled, the switch’s Extend Mode supports PoE transmission over distances of up to 250 metres on supported ports. This can help with installations where cameras or other powered devices are located far from the network switch.

The extended distance comes with an important trade-off: Ethernet speed drops to 10Mbps in Extend Mode, and the actual achievable distance depends on cable quality, device power consumption and environmental conditions. Use standard mode when higher link speeds are required.

4. Simplify Network Installation with Plug-and-Play Operation

You do not need advanced networking knowledge to get started with the TL-MS106LP. Its plug-and-play design, auto-negotiation and Auto MDI/MDIX make it straightforward to connect compatible network devices.

Connect the power adapter, attach your Ethernet devices and the switch automatically establishes supported links. This makes it a convenient choice for homes, small offices and shops that need simple network expansion.

5. Improve Network Isolation and Stability

Isolation Mode helps separate traffic between selected ports, which can be useful in certain CCTV deployments where camera traffic should be isolated from other connected devices. The switch also includes Priority Mode and PoE Auto Recovery to support specific network management and troubleshooting needs.

These features can help simplify small installations, although they do not replace a properly configured router, firewall or managed security system.

6. Compact Design for Homes and Small Businesses

With a compact body measuring approximately 99.8 × 98 × 25 mm, the MERCUSYS TL-MS106LP fits neatly on a desk or in a suitable installation area. Its fanless design provides silent operation, while the metal housing supports heat dissipation.

Use it in a home office, shop, small business, security installation or networking cabinet with adequate ventilation.

Who Should Use the MERCUSYS TL-MS106LP?

This 6-port PoE+ switch is suitable for:

• Homeowners: Connect compatible IP cameras and other wired devices.
• Small businesses: Expand wired connectivity for office equipment.
• Retail shops: Support CCTV surveillance and selected network devices.
• Schools and institutions: Connect compatible surveillance cameras and access points.
• Security installers: Build compact IP camera networks with PoE power.
• Offices: Connect compatible PoE IP phones and networking equipment.
• Wi-Fi installers: Power compatible PoE access points.
