• 5G Sub-6GHz SA/NSA technology: 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2)
• 4G LTE Cat 19: 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
• Dual SIM and eSIM with automatic switching functionality in case of signal loss or other situations
• Sending and receiving SMS via HTTP POST/GET
• Network protocols: support including TCP, UDP, IPv4, IPv6, and more
• Ethernet: 2 x 10/1000 Mbps ports with Auto-MDI/MDIX
• Support for IEEE 802.3af/at for PoE input and output ports
• Support for various VPN types, including OpenVPN, IPsec, and WireGuard
• Management via WebUI or Teltonika Remote Management System (RMS)
• CPU: MediaTek, Dual-core, 880 MHz, MIPS1004Kc
• Memory: 256 MB RAM, 16 MB Flash memory
• Dimensions: 110 × 49.30 × 235 mm
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

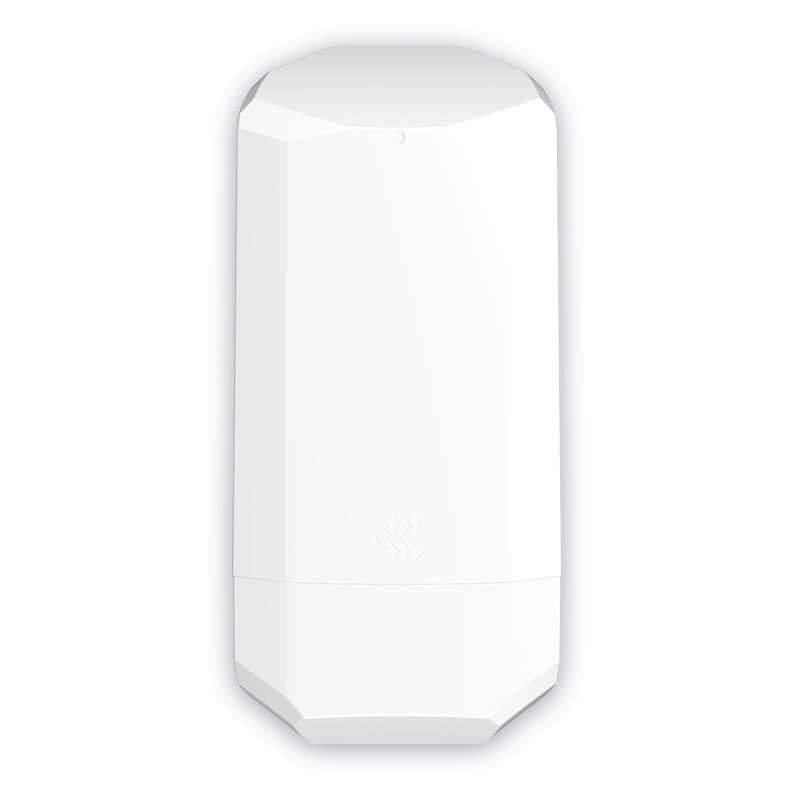

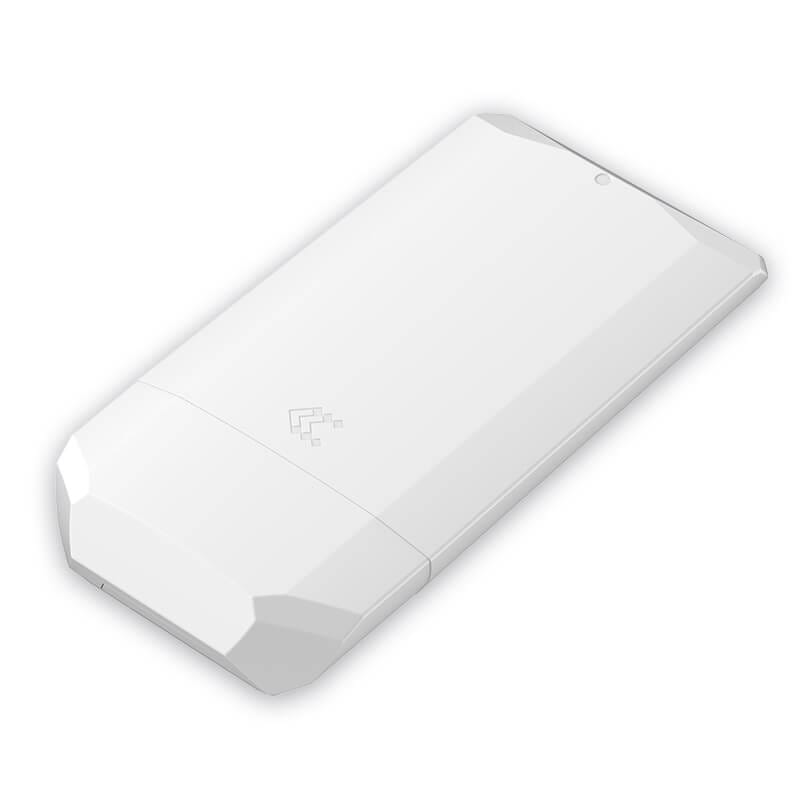

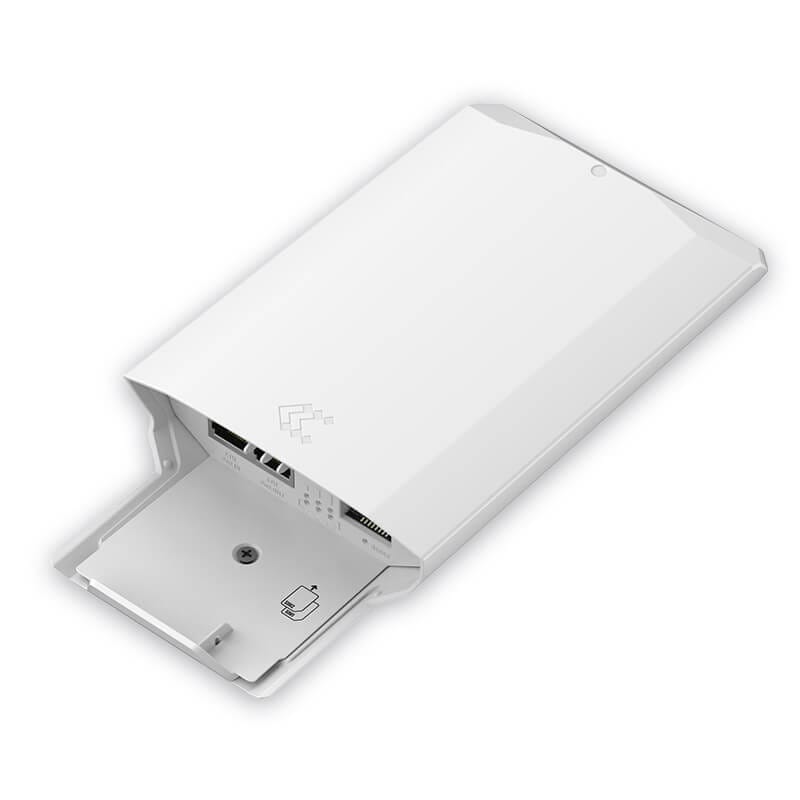

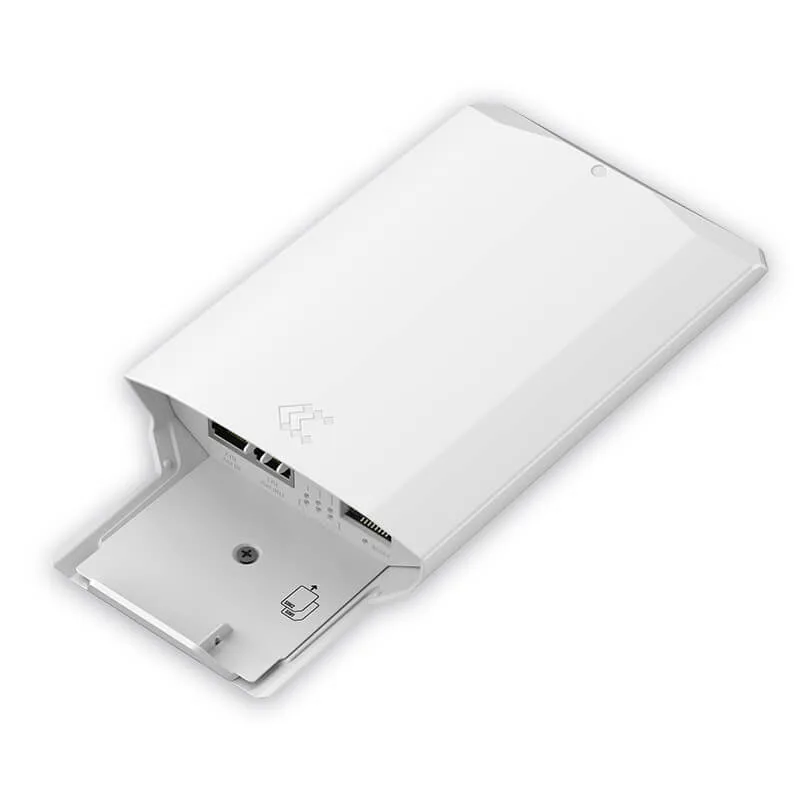

Buy Teltonika OTD500 Outdoor 5G Router IP55 Rated in Nairobi Kenya
Teltonika OTD500 – Advanced 5G Router for Your Business and Home
The Teltonika OTD500 is a state-of-the-art 5G router that delivers incredible performance, stability and functionality. With support for LTE Cat 19, eSIM, PoE in/out, and IP55 immunity, this router is perfect for both demanding business environments and home applications. Whether you’re looking for a stable Internet connection for IoT or an advanced monitoring and remote management solution, the Teltonika OTD500 will meet your needs.
Latest 5G and LTE Cat 19 technology
The Teltonika OTD500 supports 5G Sub-6Ghz SA/NSA, which means ultra-fast download speeds of up to 3.4 Gbps and upload speeds of up to 900 Mbps. With LTE Cat 19 compatibility, the router offers excellent performance on 4G LTE networks as well, reaching speeds of up to 1.6 Gbps on downloads. The use of 4×4 MIMO technology guarantees a stable connection even in crowded networks.
PoE in/out and IP55 protection
Powering peripherals has never been easier. The Teltonika OTD500 offers PoE in to power the router via Ethernet cable and PoE out to power other devices such as IP cameras. With an IP55 rating, the router is resistant to harsh weather conditions, making it ideal for outdoor applications .
Remote management and security at the highest level
The router works with Teltonika RMS (Remote Management System), allowing full control from anywhere in the world. With advanced features such as firewall, VPN, and protection against DDoS attacks, your network remains secure and stable. Integrated monitoring tools, such as traffic statistics and signal graphs, give you a complete view of your network’s performance.
Versatility and convenience with dual SIM and eSIM
The router supports dual SIM, allowing automatic switching between cards in case of weak signal, roaming or data overage. The built-in eSIM allows management of up to 7 profiles without the need for physical SIM cards. This makes the device ideal for mobile and IoT applications where security and connection availability are key.
5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
3GPP Release
Release 16
eSIM
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list
Operator block/allow list (by country or separate operators)
Band management
Band lock, Used band status display
SIM idle protection service
Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Framed routing
Framed routing: support an IP network behind 5G UE
Ethernet
ETHERNET
2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP
DLMS/COSEM
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Email
Receive email message status alerts of various services
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
CPU
MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM
256 MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
Power
Connector
RJ45 Socket
Input voltage range
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range for PoE
42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption
Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W

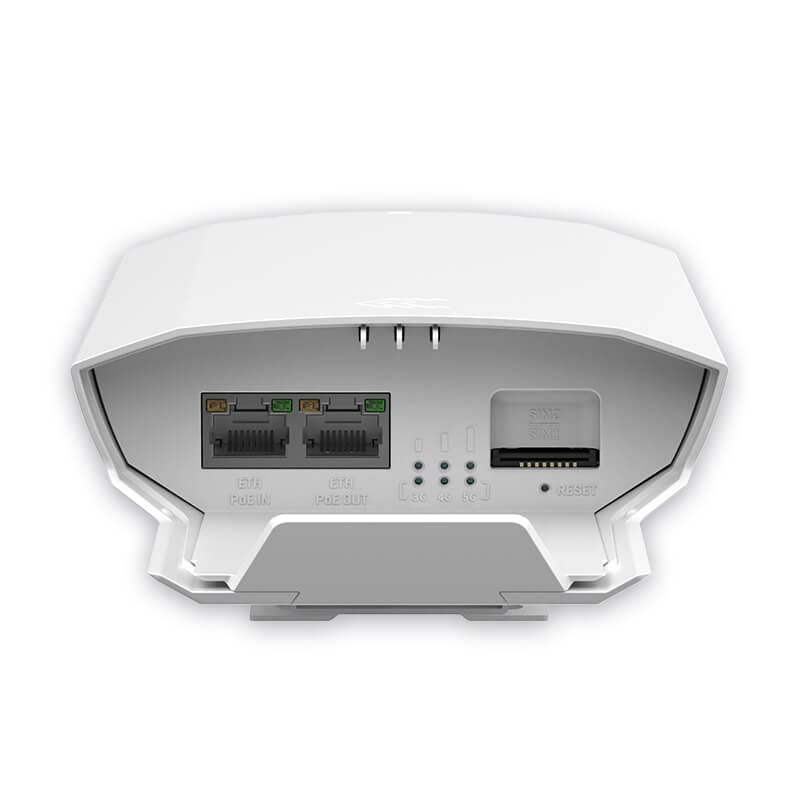

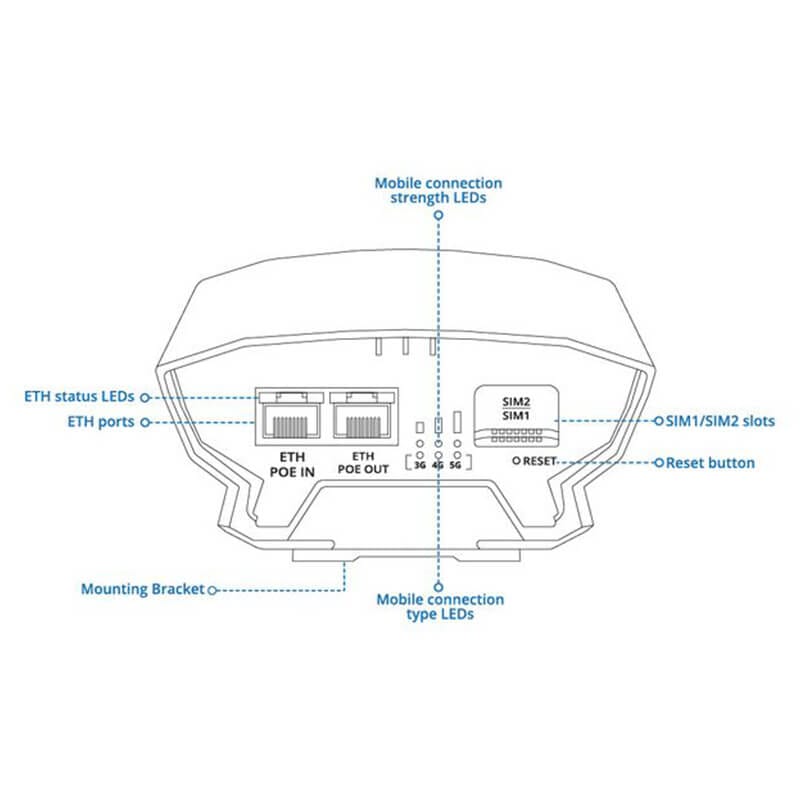

Physical Interfaces
Ethernet
2 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
