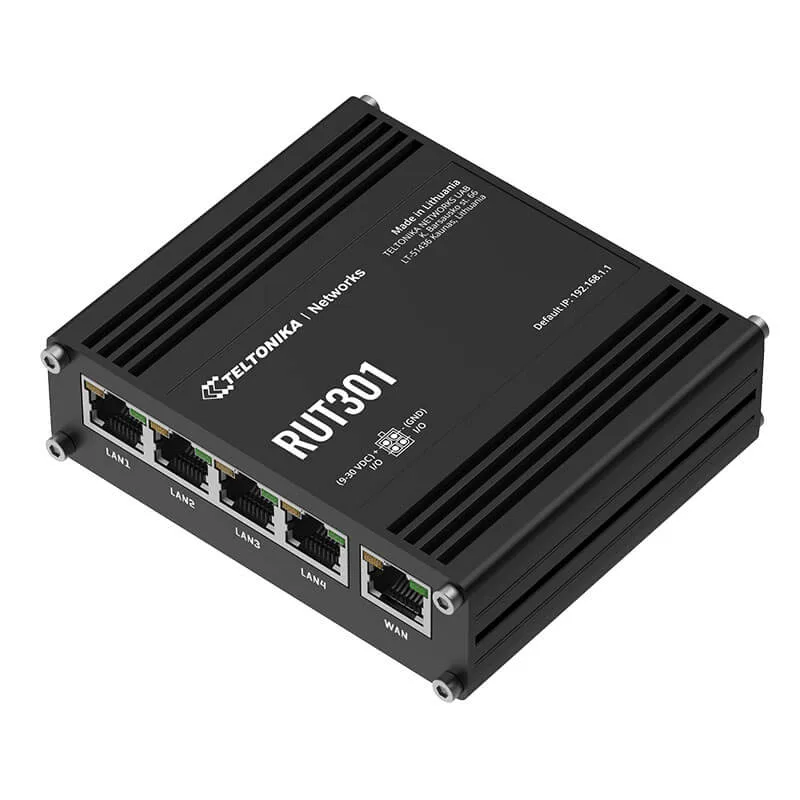

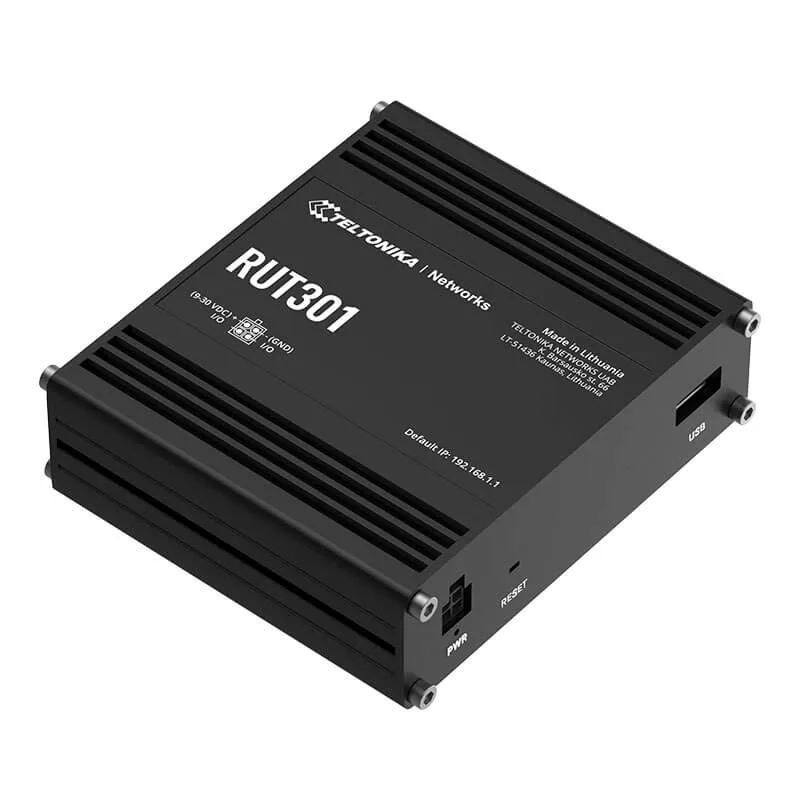

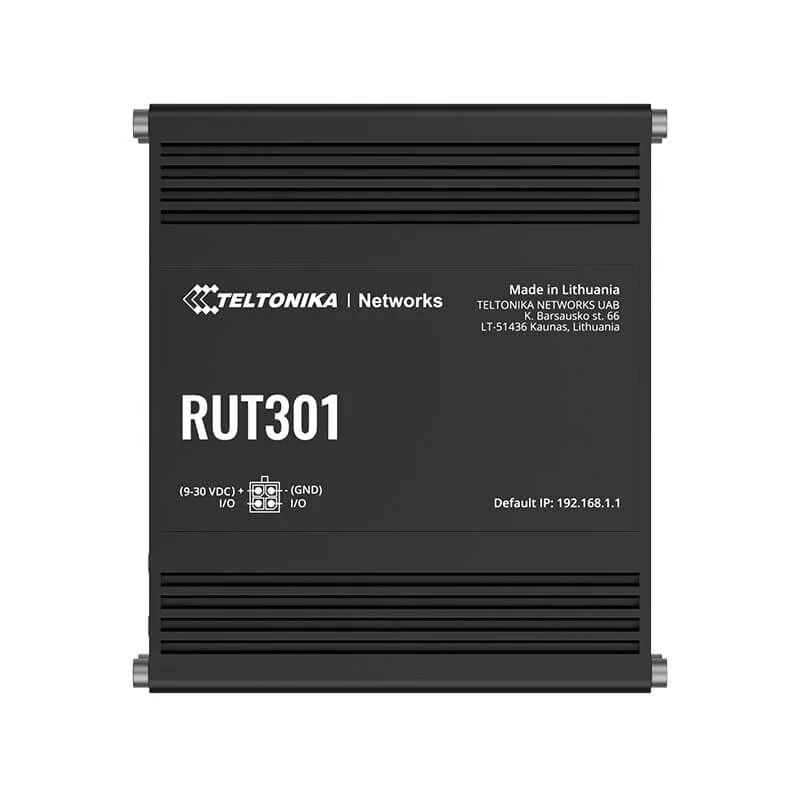

Teltonika RUT301 Industrial Ethernet Router

Availability:

In Stock

Key Features

  • 5 x Ethernet ports, 2 x configurable digital inputs/outputs and a USB port for easy connection of various devices to the Internet
  • 5x Ethernet ports (10/100 Mbps) (4x LAN, 1x WAN)
  • Passive PoE support for power over LAN port (9-30 VDC)
  • RMS for remote management, access & VPN services
  • Passive PoE helps reduce deployment complexity
  • Preconfigured Firewall for instant security and some of the best rated VPNs
  • Aluminum housing, which is capable to withstand harsh environments
  • DIN rail mounting option



Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 15,500.00 KShs 18,500.00 VAT exclusive

In Stock

Buy Teltonika RUT301 Industrial Ethernet Router in Nairobi Kenya

The Teltonika RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This device seamlessly connects industrial machinery in manufacturing plants, automation systems, and much more while being one of the most affordable connectivity devices in Teltonika Networks product portfolio.

With 5 Ethernet ports, 2 configurable digital inputs/outputs and a USB 2.0 port, the Teltonika RUT301 router is ideal for connecting to industrial equipment, enterprise technology or retail systems. In addition, the RUT301 has a pre-configured firewall and supports a wide range of industrial communication protocols, making it easy to integrate into different environments.

This professional device is equipped with the RutOS system. RutOS is an operating system based on Linux OpenWRT, which is a big advantage of the selection of Teltonika routers

Another advantage is the use of RMS functions. The Remote Management System (RMS) enables remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect information about the status of individual devices, even if the devices do not have public IP addresses.

The Teltonika RUT301 router also offers connection to the IoT-RMS cloud platform. This system allows you to remotely manage and configure not only your device, but also the entire solution infrastructure using RMS CONNECT.

This router is great, particularly when evaluating its security capabilities. The RUT301 is equipped with a pre-configured firewall, providing immediate secure network support. Additionally, it offers the option to further enhance security through multiple VPNs, such as OpenVPN or IPsec, facilitating the creation of a secure and private connection.

Category: Tags: ,
Ethernet

  • WAN

    1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

  • LAN

    4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

  • Routing

    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

  • Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

  • VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

  • Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

  • Firewall

    Port forward, traffic rules, custom rules, TTL target customisation

  • Firewall status page

    View all your Firewall statistics, rules, and rule counters

  • Ports management

    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

  • Network topology

    Visual representation of your network, showing which devices are connected to which other devices

  • DHCP

    Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

  • QoS / Smart Queue Management (SQM)

    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

  • DDNS

    Supported >25 service providers, others can be configured manually

  • DNS over HTTPS

    DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

  • Network backup

    VRRP, Wired options, each of which can be used as an automatic Failover

  • Load balancing

    Balance Internet traffic over multiple WAN connections

  • Hotspot

    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

  • SSHFS

    Possibility to mount remote file system via SSH protocol

  • Traffic Management

    Real-time monitoring, wireless signal charts, traffic usage history

Security

  • Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

  • Firewall

    Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

  • Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

  • VLAN

    Port and tag-based VLAN separation

  • WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

  • Access control

    Flexible access control of SSH, Web interface, CLI and Telnet

  • SSL certificate generation

    Let’s Encrypt and SCEP certificate generation methods

  • 802.1x

    Port-based network access control server

VPN

  • OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

  • OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

  • IPsec

    XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

  • GRE

    GRE tunnel, GRE tunnel over IPsec support

  • PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

  • Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

  • DMVPN

    Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

  • SSTP

    SSTP client instance support

  • ZeroTier

    ZeroTier VPN client support

  • WireGuard

    WireGuard VPN client and server support

  • Tinc

    Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

OPC UA

  • Supported modes

    Client, Server

  • Supported connection types

    TCP

MODBUS

  • Supported modes

    Server, Client

  • Supported connection types

    TCP, USB

  • Custom registers

    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

  • Supported data formats

    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

  • Protocol

    HTTP(S), MQTT, Azure MQTT

  • Data to server

    Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

MQTT Gateway

  • Modbus MQTT Gateway

    Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

  • Supported modes

    Station, Outstation

  • Supported connection

    TCP, USB

DLMS

  • DLMS Support

    DLMS – standard protocol for utility meter data exchange

  • Supported modes

    Client

  • Supported connection types

    TCP, USB

API

  • Teltonika Networks Web API (beta) support

    Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

  • WEB UI

    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

  • FOTA

    Firmware update from server, automatic notification

  • SSH

    SSH (v1, v2)

  • TR-069

    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

  • MQTT

    MQTT Broker, MQTT publisher

  • SNMP

    SNMP (v1, v2, v3), SNMP Trap, Brute force protection

  • JSON-RPC

    Management API over HTTP/HTTPS

  • RMS

    Teltonika Remote Management System (RMS)

IoT Platforms

  • Cumulocity – Cloud of Things

    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions

  • Azure IoT Hub

    Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

  • CPU

    Mediatek, 580 MHz, MIPS 24KEc

  • RAM

    128 MB, DDR2

  • FLASH storage

    16 MB serial NOR flash

Firmware / Configuration

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

  • Factory settings reset

    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

FIRMWARE CUSTOMISATION

  • Operating system

    RutOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

  • GPL customization

    You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

  • Package Manager

    The Package Manager is a service used to install additional software on the device

USB

  • Data rate

    USB 2.0

  • Applications

    Samba share, USB-to-serial

  • External devices

    Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

  • Storage formats

    FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

  • Input

    Up to 2 x Configurable digital Inputs (shared), 0 – 6 V detected as logic low, 8 – 30 V detected as logic high

  • Output

    Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA

  • Events

    Email, RMS

  • I/O juggler

    Allows to set certain I/O conditions to initiate event

Power

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC, reverse polarity protection, voltage surge/transient protection

  • PoE (passive)

    Passive PoE (Optional – different hardware required; contact your sales manager)

  • Power consumption

    Idle: < 0.8 W, Max: < 3.8 W

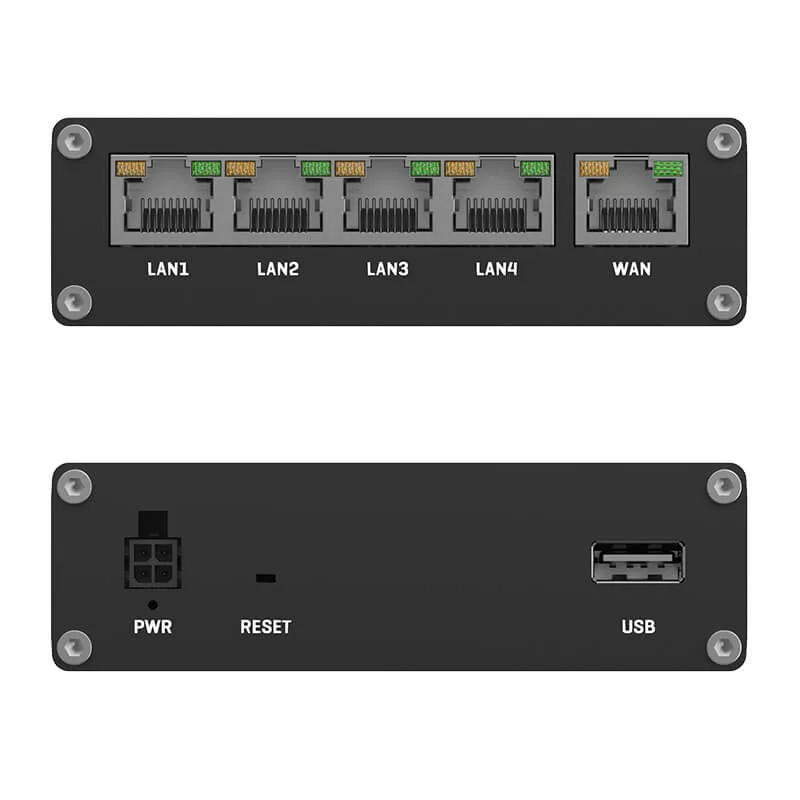

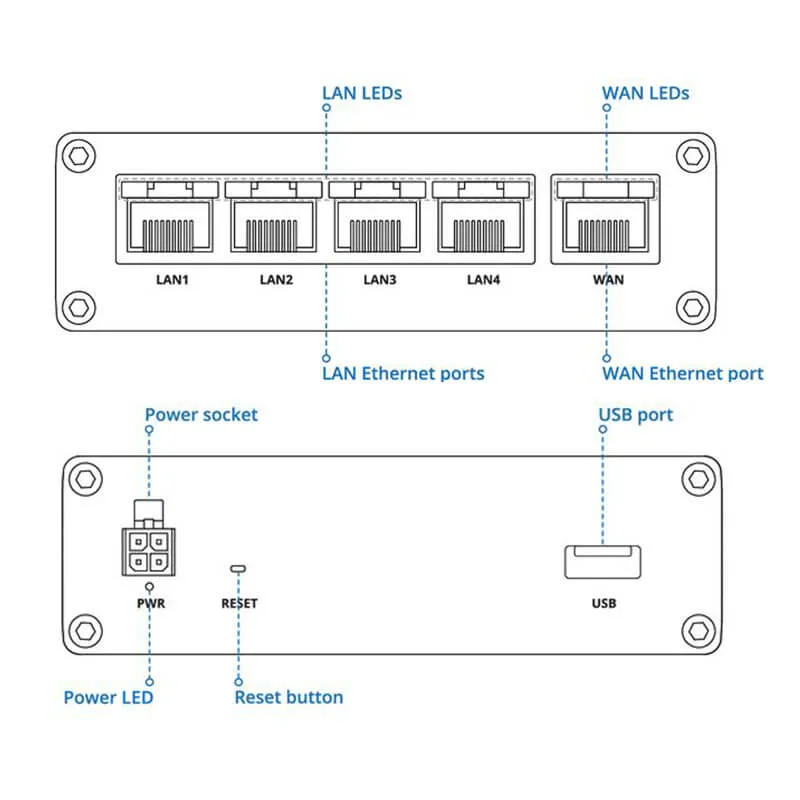

Physical Interfaces

  • Ethernet

    5 x RJ45 ports, 10/100 Mbps

  • I/O’s

    2 x Configurable I/O pins on 4-pin power connector

  • Status LEDs

    1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED

  • Power

    1 x 4-pin power connector

  • USB

    1 x USB A port for external devices

  • Reset

    Reboot/User default reset/Factory reset button

Physical Specification

  • Casing material

    Aluminium housing

  • Dimensions (W x H x D)

    100 x 30 x 85 mm

  • Weight

    233 g

  • Mounting options

    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    Giteki, RoHS, REACH, CE, FCC, IC, RCM, CB

EMC Emissions & Immunity

  • Standards

    EN 55032: 2015+A11:2020+A1:2020

    EN 61000-3-3: 2013+ A1:2019+A2:2021

    EN IEC 61000-3-2: 2019+A1:2021

    EN 55035: 2017+A11:2020

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2020

  • EFT

    EN 61000-4-4: 2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5: 2014+A1: 2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN IEC 61000-4-11:2020

Safety

  • Standards

    RCM: AS/NZS 62368.1:2018

    CB: IEC 62368-1:2018

Safety (Ordinary Locations)

  • Standards

    CB: IEC 62368-1:2018

    UL/CSA Safety:
