• 1× port WAN 10/100/1000 Mbps
• 3× port LAN 10/100/1000 Mbps (auto MDI/MDIX)
• Teltonika Remote Management System (RMS)
• Processor: MediaTek, Dual-core, 880 MHz, MIPS1004KC
• Digital Input/Output: For remote monitoring and control
• USB 2.0
• Operating System RutOS: Based on OpenWrt
• Multiple Secure VPN Services
• IP Rating: IP30
• Dimensions: 115 × 32,2 × 95,2 mm
• Weight: 353 g
Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information. NB: Prices are subject to change without notice

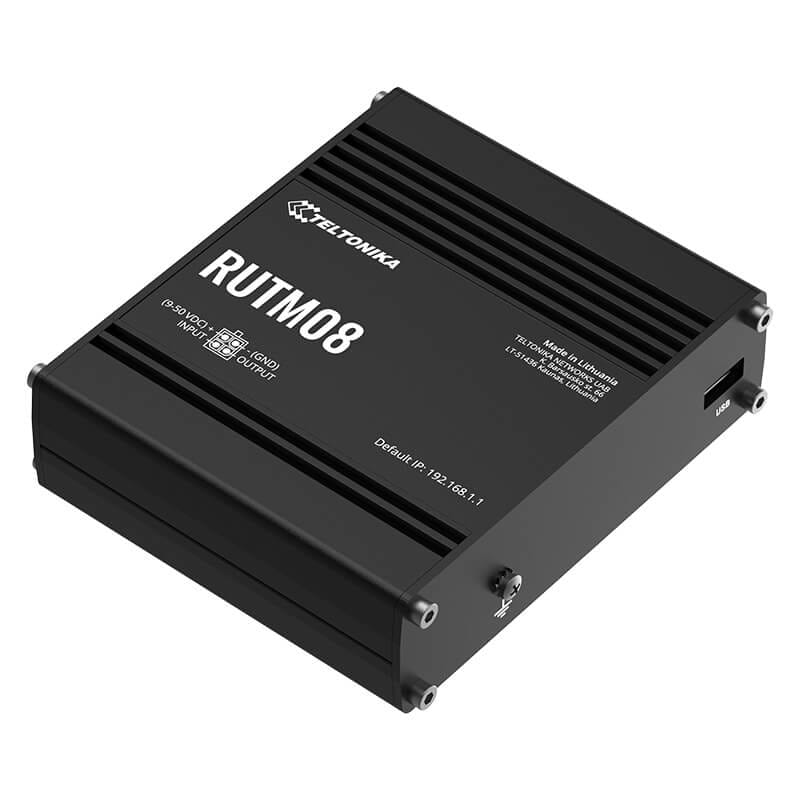

Buy Teltonika RUTM08 Industrial Wired Router in Nairobi Kenya
The RUTM08 is a robust and versatile networking device designed for demanding environments. It features comprehensive routing capabilities, including support for static and dynamic routing protocols such as BGP, OSPF, RIP, and EIGRP, ensuring optimal data flow and connectivity. Security is a top priority, with advanced firewall configurations, DDOS prevention, and flexible access control measures. Additionally, the RUTM08 supports a wide range of VPN protocols, including OpenVPN, IPsec, WireGuard, and ZeroTier, providing secure remote access and network scalability. With its industrial-grade design, including a durable aluminium casing and wide operating temperature range, the RUTM08 is built to withstand harsh conditions.
Key features include:
Advanced Routing and Protocol Support: Ensures seamless and efficient data management across networks.
Comprehensive Security Features: Offers robust protection against cyber threats and unauthorized access.
Industrial-Grade Durability: Designed to operate reliably in extreme environments with a wide temperature range and sturdy construction.
The Teltonika RUTM08 is a robust industrial router designed to meet the demanding needs of modern networking environments. This high-performance device is equipped with four Gigabit Ethernet ports, making it ideal for applications that require reliable and fast wired connections. Powered by a powerful CPU and the advanced RutOS software, the RUTM08 ensures seamless and secure data transmission, making it a top choice for industrial and professional applications.
Key Features of the Teltonika RUTM08
Gigabit Ethernet Ports: The RUTM08 features four Gigabit Ethernet ports, providing high-speed connectivity for multiple devices. This makes it suitable for environments where fast and stable internet connections are crucial.
Advanced Security Protocols: Security is a top priority with the RUTM08. It supports a wide range of VPN services, including OpenVPN, IPsec, PPTP, L2TP, and DMVPN, ensuring secure and encrypted data transmission.
Powerful CPU: The router is powered by a robust CPU, which ensures efficient data processing and smooth operation even under heavy network traffic.
RutOS Software: The RUTM08 runs on RutOS, an advanced operating system based on OpenWrt. RutOS offers a user-friendly interface and a wide range of features, including advanced firewall settings, remote management capabilities, and support for various networking protocols.
Remote Management System (RMS): The RUTM08 is compatible with Teltonika’s Remote Management System, allowing users to monitor and manage their network devices remotely. This feature is particularly useful for large-scale deployments and remote locations.
Wide Power Supply Range: The router supports a wide range of power supply voltages (9-50V), making it versatile and easy to integrate into various industrial environments.
Digital Input/Output and USB Interface: The RUTM08 includes digital input/output for remote monitoring and control, as well as a USB 2.0 interface for additional connectivity options.
Protocol Support: The router supports multiple protocols, including MQTT, Modbus, TCP, BGP, and GRE, making it highly adaptable to different networking requirements.
The Teltonika RUTM08 is a versatile and powerful industrial router that offers high-speed connectivity, advanced security features, and robust performance. Its compatibility with Teltonika’s Remote Management System and support for a wide range of protocols make it an excellent choice for industrial and professional applications. Whether you need a reliable router for a factory, office, or remote location, the RUTM08 delivers exceptional performance and flexibility.
In Teltonika’s Words:-

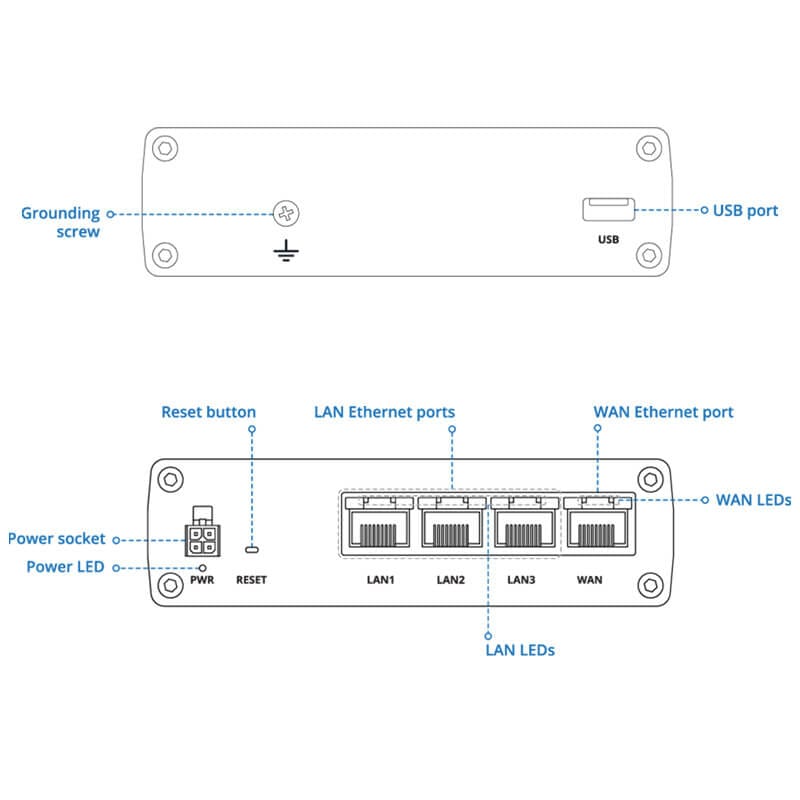

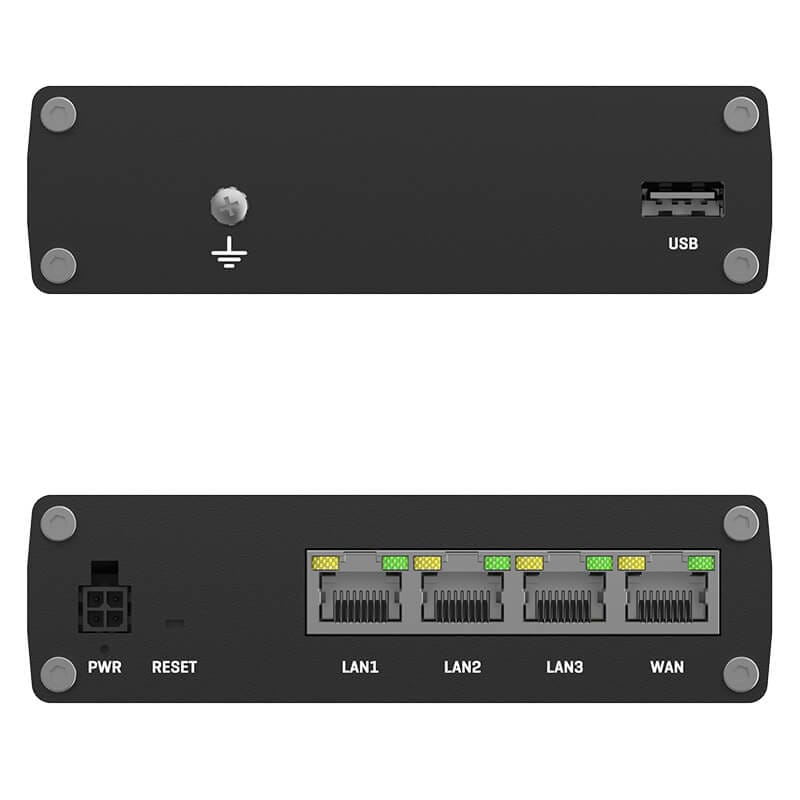

The RUTM08 is an industrial wired router designed for establishing reliable cable connections across a broad range of industrial applications. The router has four Gigabit RJ45 ports, which enable rapid network and data transmission between connected endpoints. The RUTM08 can support up to 128 tag/port-based VLANs for enhanced network flexibility as well as multiple VPNs and M2M communication protocols, which are particularly relevant in industrial environments.
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall
Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page
View all your Firewall statistics, rules, and rule counters
Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology
Visual representation of your network, showing which devices are connected to which other devices
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS
Supported >25 service providers, others can be configured manually
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup
VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing
Balance Internet traffic over multiple WAN connections
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS
Possibility to mount remote file system via SSH protocol
VRF support
Initial virtual routing and forwarding (VRF) support
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
802.1x
Port-based network access control client
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
Supported modes
Station, Outstation
Supported connection
TCP, USB
DLMS/COSEM
DLMS Support
DLMS – standard protocol for utility meter data exchange
Supported modes
Client
Supported connection types
TCP, USB
COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
Teltonika Networks Web API (beta) support
Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA
Firmware update from server, automatic notification
SSH
SSH (v1, v2)
Email
Receive email message status alerts of various services
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC
Management API over HTTP/HTTPS
RMS
Teltonika Remote Management System (RMS)
IoT Platforms
Cumulocity – Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics
CPU
MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM
256MB, DDR3
FLASH storage
16 MB serial NOR flash, 256 MB serial NAND flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep settings
Update FW without losing current configuration
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
Operating system
RutOS (OpenWrt based Linux OS)
Supported languages
Busybox shell, Lua, C, C++
Development tools
SDK package with build environment provided
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager
The Package Manager is a service used to install additional software on the device
