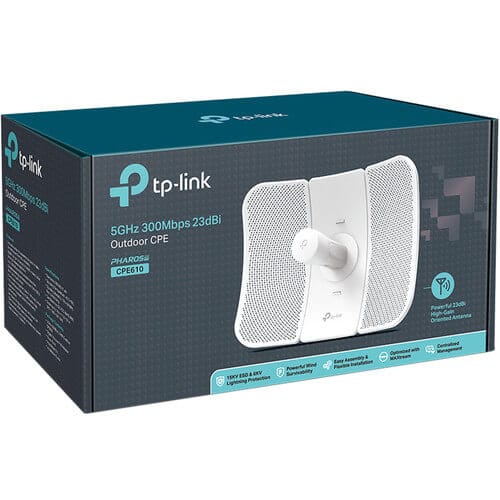

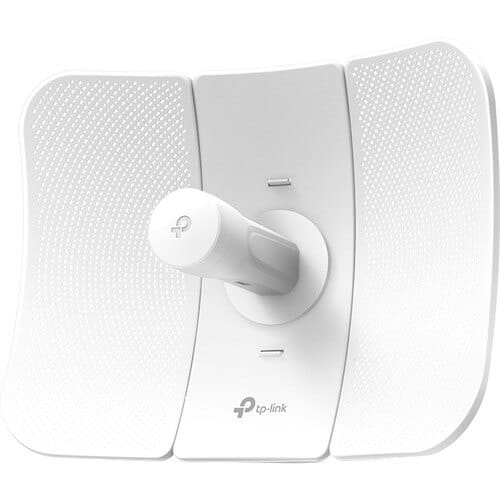

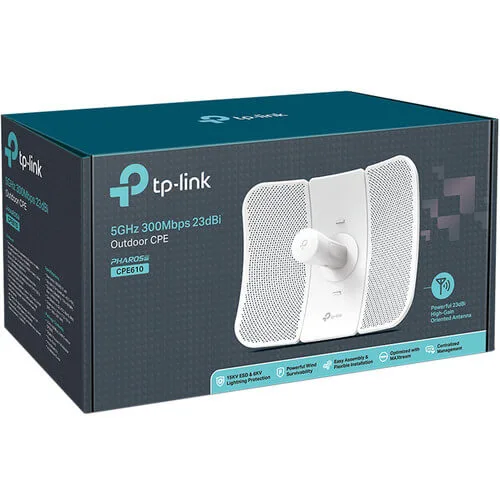

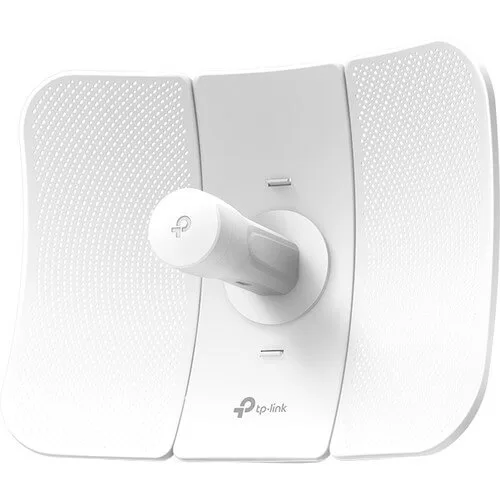

Buy TP-link CPE610 5GHz 300Mbps 23dBi Outdoor CPE in Nairobi Kenya
With the 5 GHz 300 Mb/s 23 dBi Outdoor CPE from TP-Link, you can take advantage of wireless data transfer rates of up to 300 Mb/s on the 5 GHz frequency. This antenna is designed to provide long-distance connectivity as it supports an antenna gain of 23 dBi and supports 2×2 MIMO functionality. Setup is simple, as this weatherproof CPE comes IP65 rated and offers 15 kV ESD and 6 kV lightning protection.
Up to 300 Mb/s on 5 GHz wireless data rates
23 dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
Excellent beam directivity, improved latency, and noise cancellation

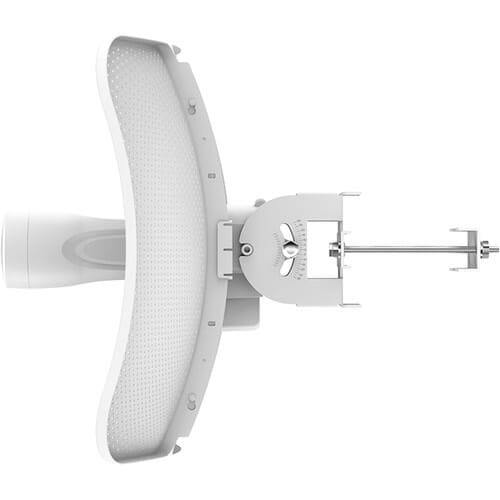

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
Pharos Control gives administrators a free, centralized management system
Passive PoE support allows flexible deployment and convenient installation
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost effective solution for long-range outdoor wireless networking transmission up to 30 km*2.
Pharos Control – Centralized Management System
CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS – provides an alternative management method, and allows professionals to access more detailed configurations.
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water- and dust-proof design
Wireless
Wireless Standards
IEEE 802.11a/n
Proprietary Protocol
TDMA mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic)
Frequency
5.15~5.85 GHz
Transmit Power
Max. 27 dBm (adjustable power by 1 dBm)
Software
Configuration
Network Configuration
WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40 MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System
System Tools
Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-Level Optimizations
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
Other Specifications
Certifications
CE, FCC, RoHS, IP65
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Please note, it is recommended you use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended
Temperature & Humidity
Operating Temperature: -40 to 158°F / -40 to 70°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 95% non-condensing
Dimensions
14.4 x 11.0 x 8.1″ / 360 x 280 x 207 mm (No mount)
