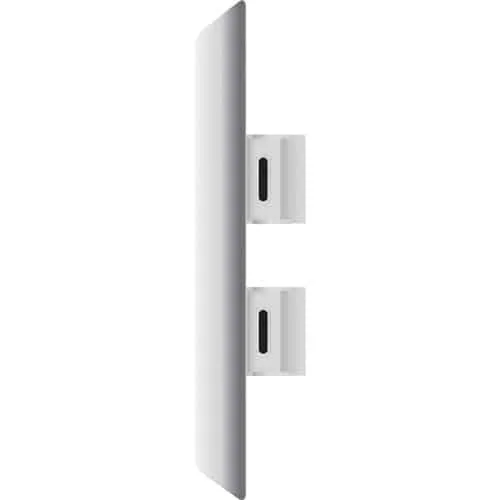

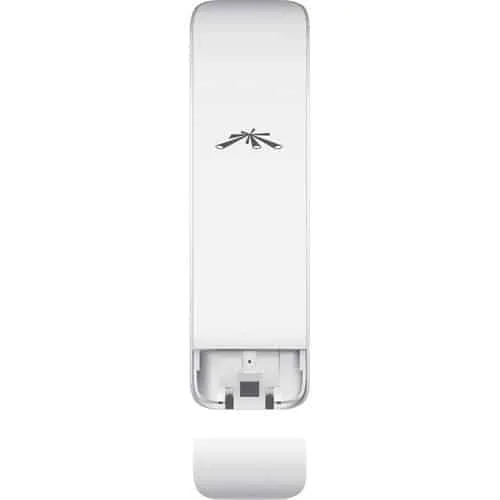

Ubiquiti NanoStation M5 NSM5 Indoor/Outdoor

Ubiquiti
Availability:

In Stock


Key Features:

  • Atheros AR2313 S 180 MHz MIPS Processor.
  • 16MB SDRAM, 4MB Flash Memory.
  • 10/100 BASE-TX Ethernet Interface.
  • 2 x 14dBi Dual Polarity Antennas.
  • 15+ km Range.
  • AirOS Software.
  • External Status LEDs.
  • FCC Part 15.247, IC RS210, CE Approved.
  • RoHS Compliant.
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

Get the Ubiquiti NanoStation M5 NSM5 Indoor/Outdoor now online from Devices Technology Store at an affordable price from the leading Ubiquiti dealer in Nairobi, Kenya.

Overview.

The Ubiquiti NanoStation M5 NSM5 Indoor/Outdoor combines proprietary hardware and software technologies to deliver its breakthrough. Combination of throughput and range with cost-effective value.

The integrated 2×2 MIMO sector antenna 120 simply covers area to connect client AirMax AC devices. This method eliminates hidden node collisions and maximizes airtime efficiency.

LiteBeam products deliver superior performance in reduced latency, throughput, and scalability.

Specifications.

  • Processor Specs: MIPS 74K.
  • Memory: 64 MB.
  • Networking Interface: (1) 10/100/1000 Ethernet Port.

Antenna Information.

  • Operating Frequency: Worldwide: 5150 – 5875 MHz.
  • Output Power: 25 dBm.
  • Gain: 16 dBi.
  • Max. VSWR: 1.5:1.

Versatile Application Use.

The NanoStation can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.

Powerful airOS Features.

Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking.

Advanced Software Technology.

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Specifications

Brand

Ubiquiti Networks NSM5 Specs

General Specifications
ProcessorAtheros AR2313 SOC, MIPS 4KC, 180 MHz
Memory16 MB SDRAM, 4 MB flash

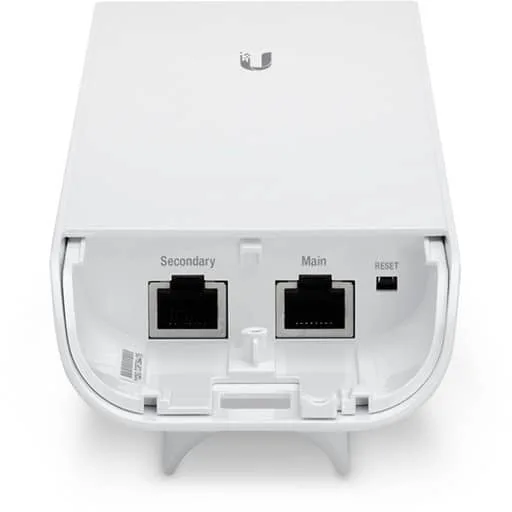

Networking Interface10/100 BASE-TX (Cat5, RJ-45) Ethernet interface
RangeOutdoor (BaseStation Antenna Dependent): Over 32,808′ (10,000 m)
Using External Antenna (Optional): 32,8083′ (10,0000 m)
Throughput25 Mb/s+ TCP/IP
Radio Operating Frequency
TX SpecificationRadio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Average Power: Tolerance
6 Mb/s: 24 dBm: +/-1.5 dB
9 Mb/s: 24 dBm: +/-1.5 dB
12 Mb/s: 24 dBm: +/-1.5 dB
18 Mb/s: 24 dBm: +/-1.5 dB
24 Mb/s: 24 dBm: +/-1.5 dB
36 Mb/s: 22 dBm: +/-1.5 dB
48 Mb/s: 21 dBm: +/-1.5 dB
54 Mb/s: 19 dBm: +/-1.5 dB

RX SpecificationRadio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: +/-1.5 dB
9 Mb/s: -93 dBm: +/-1.5 dB
12 Mb/s: -91 dBm: +/-1.5 dB
18 Mb/s: -90 dBm: +/-1.5 dB
24 Mb/s: -86 dBm: +/-1.5 dB
36 Mb/s: -83 dBm: +/-1.5 dB
48 Mb/s: -77 dBm: +/-1.5 dB
54 Mb/s: -74 dBm: +/-1.5 dB

Channel Size Support
Channel Width5/10/20/40 MHz
Antenna
GainIntegrated 2 x 14 dBi dual polarity antennas
PolarizationMulti-polarized
PolarityAdaptive vertical/horizontal
Polarization SelectionSoftware controlled
3 dB Beamwidth Azimuth55°
External AntennasRP-SMA connector (optional)
VSWR1.4:1.0
Front to Back Ratio30 dB+
3 dB Beamwidth Elevation18°
Power
Power Supply12 V, 1 A (12 W)
Power MethodPassive Power over Ethernet (pairs 4, 5+, 7, 8 return)
Environmental
Operating Temperature-4 to +158°F (-20 to +70°C)
Operating Humidity5 to 95% (condensing)
Software Specification
SoftwareAirOS
Compliance and Approvals
ComplianceRoHS
ApprovalsFCC Part 15.247, IC RS210, CE
Other
Shock and VibrationETSI300-019-1.4
MountingPole mounting kit (included)

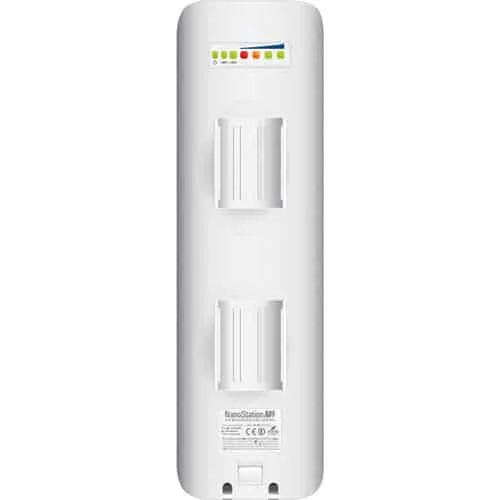

LEDsExternal status LEDs
Physical Characteristics
Enclosure MaterialOutdoor UV stabalized plastic
Dimensions (L x W x H)10.3 x 3.1 x 1.1″ (26.4 x 8.0 x 3.0 cm)
Weight14.1 oz (400.0 g)
Packaging Info
Package Weight1.45 lb
Box Dimensions (LxWxH)12.992 x 4.961 x 3.386″
