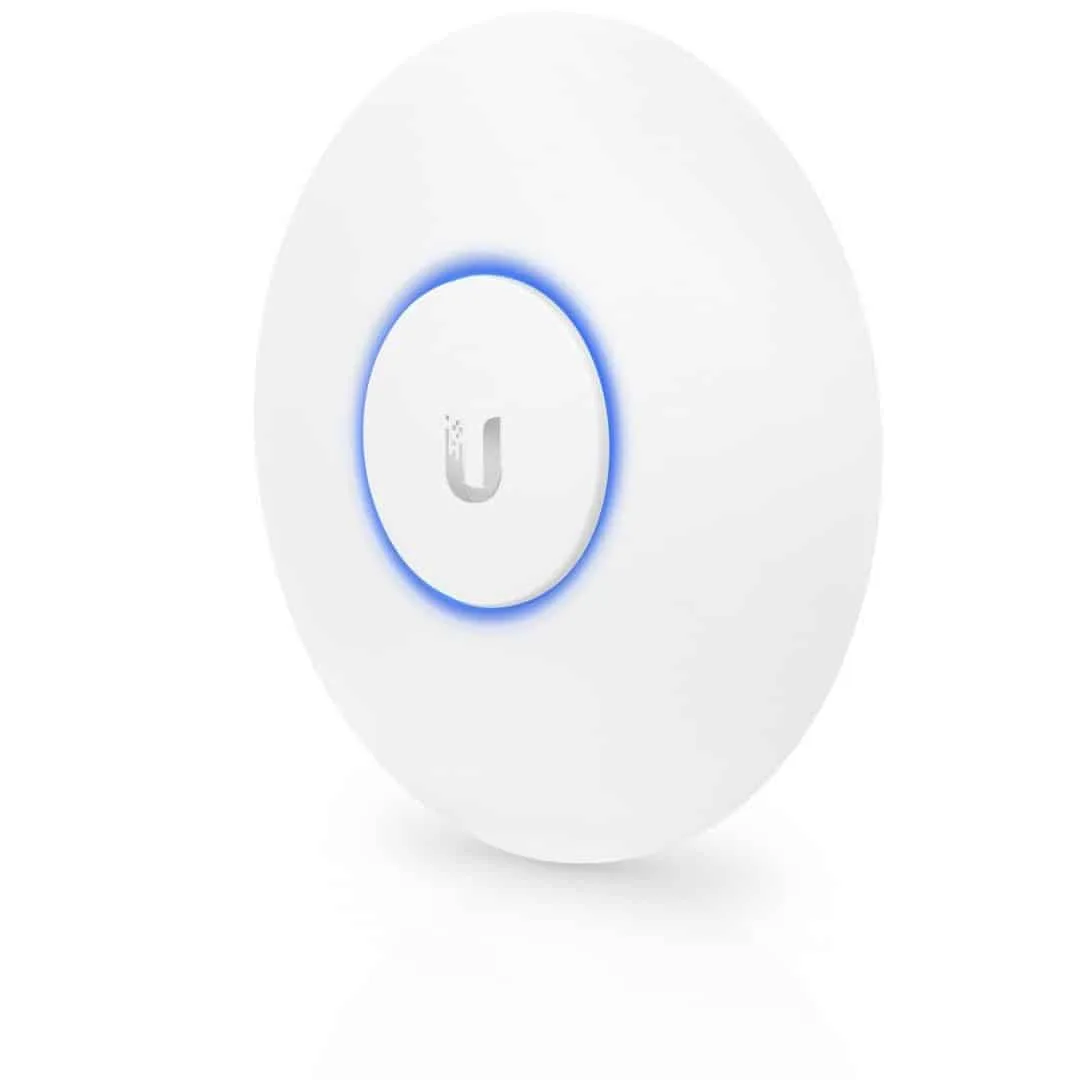

Ubiquiti UniFi AC PRO Access Point Description.
The Ubiquiti UniFi AC PRO Access Point features the latest Wi-Fi 802.11ac, 3×3 MIMO technology in a refined industrial design and is ideal for deployment of maximum‑performance wireless networks.
MIMO Technology.
The UniFi AC Pro AP supports simultaneous dual-band, 3×3 MIMO technology in the 5 and 2.4 GHz radio bands.
Versatile Design.
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.
- Manage Your Networks from a Single Control Plane.
- Intuitive and Robust Configuration, Control and Monitoring.
- Remote Firmware Upgrade.
- Users and Guests.
- Guest Portal/Hotspot Support.
Specifications;
- 2.4GHz Speed – 450Mbps.
- 5GHz Speed – 1300Mbps.
- PoE Mode – 802.3af PoE / 802.3at PoE+.

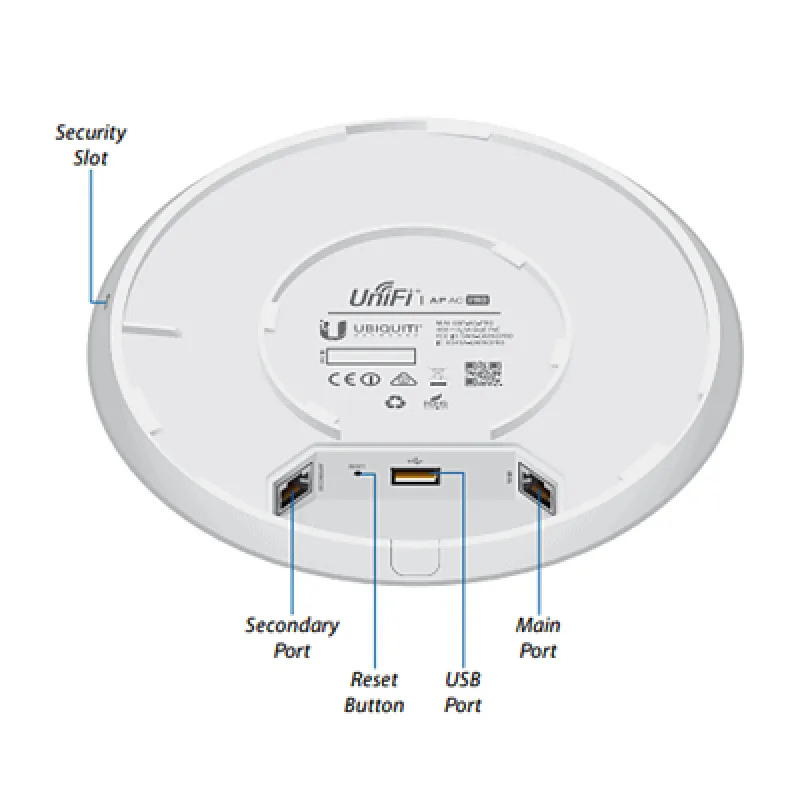

- Ports – Two Gigabit Ethernet ports.
Specifications
Ubiquiti Networks UAP-AC-PRO Specs
Networking Interface |
2 x 10/100/1000 Ethernet ports |
Button |
Reset |
Antennas |
3 x Dual-band antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
Wi-Fi Standards |
802.11a/b/g/n/ac |
Power Method |
Passive Power over Ethernet (48 V), 802.3af/803.2at Supported
(Supported Voltage Range: 44 to 57 VDC) |
Power Supply |
48 V, 0.5 A PoE Gigabit adapter (included) |
Maximum Power Consumption |
9 W |
Maximum TX Power |
2.4 GHz: 22 dBm
5 GHz: 22 dBm |
BSSID |
Up to 4 per radio |
Power Save |
Supported |
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Certifications |
CE, FCC, IC |
Mounting |
Wall/Ceiling (kits included) |
VLAN |
802.1Q |
Advanced QoS |
Per user rate limiting |
Guest Traffic Isolation |
Supported |
WMM (Wi-Fi Multimedia) |
Voice, video, best effort, and background |
Concurrent Clients |
200+ |
Standards |
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mb/s802.11n
6.5 to 450 Mb/s (MCS0 – MCS23, HT 20/40)802.11ac
6.5 to 1300 Mb/s (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)802.11b
1, 2, 5.5, 11 Mb/s802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mb/s |
Dimensions |
7.74 x 7.74 x 1.38″ / 196.7 x 196.7 x 35.0 mm |
Weight |
Without Mounting Kit: 12.4 oz / 350 g
With Mounting Kit: 15.9 oz / 450 g |
Package Weight |
2.55 lb |
Box Dimensions (LxWxH) |
9.6 x 9.0 x 3.9″ |
