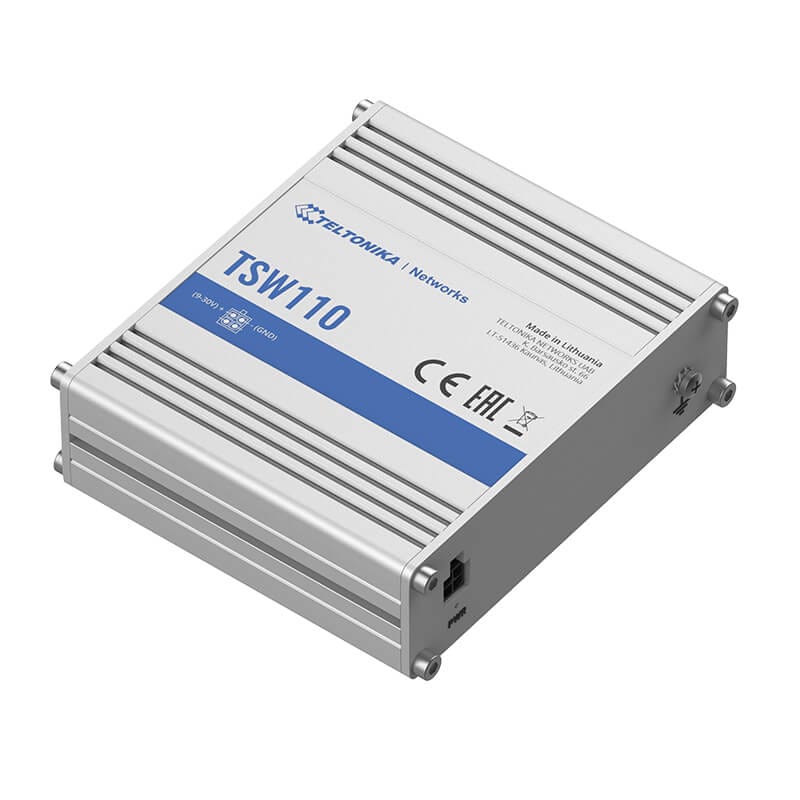

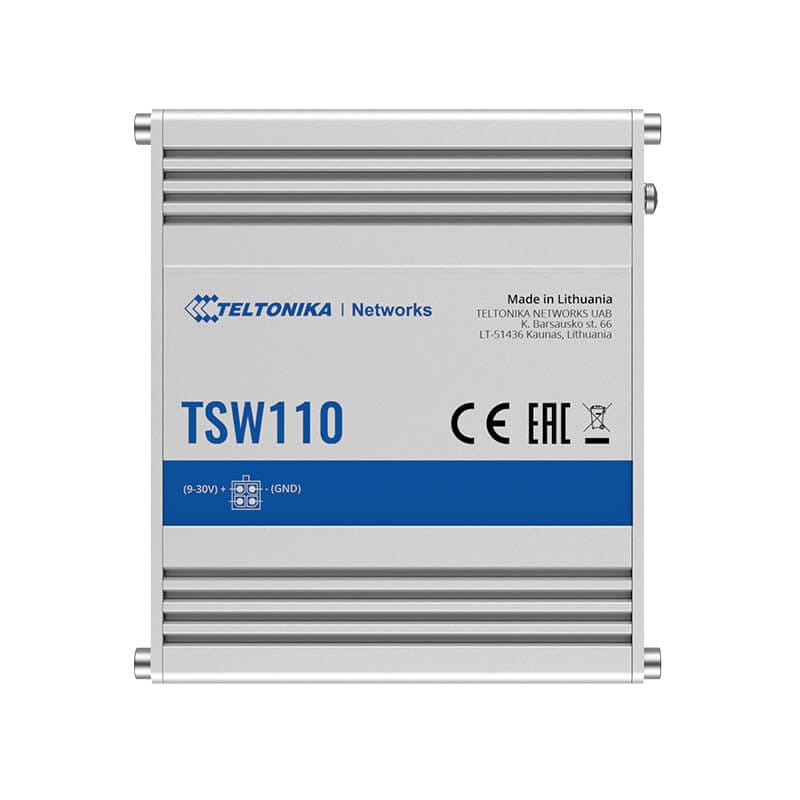

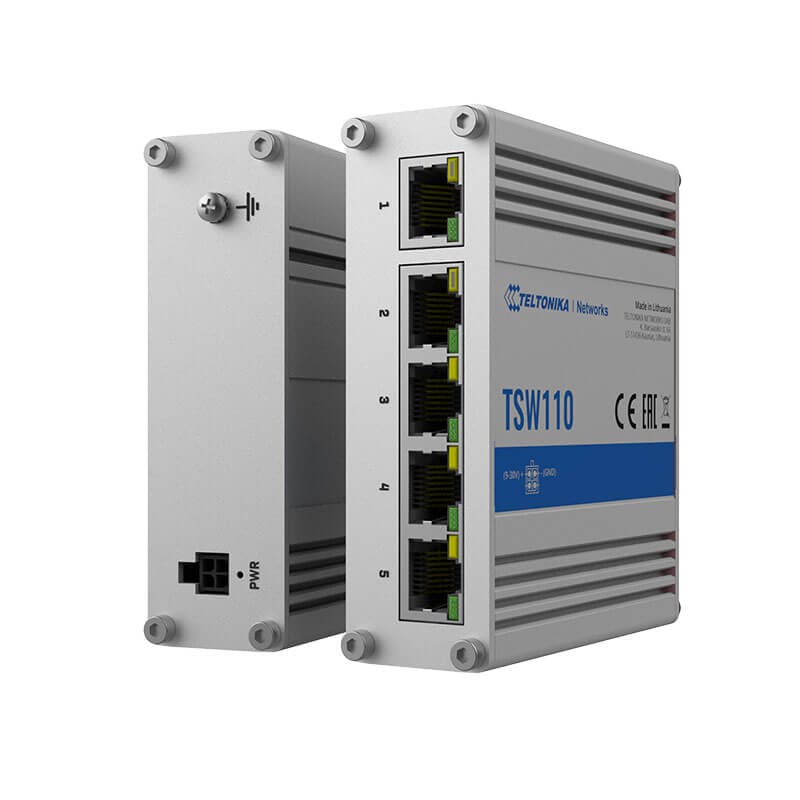

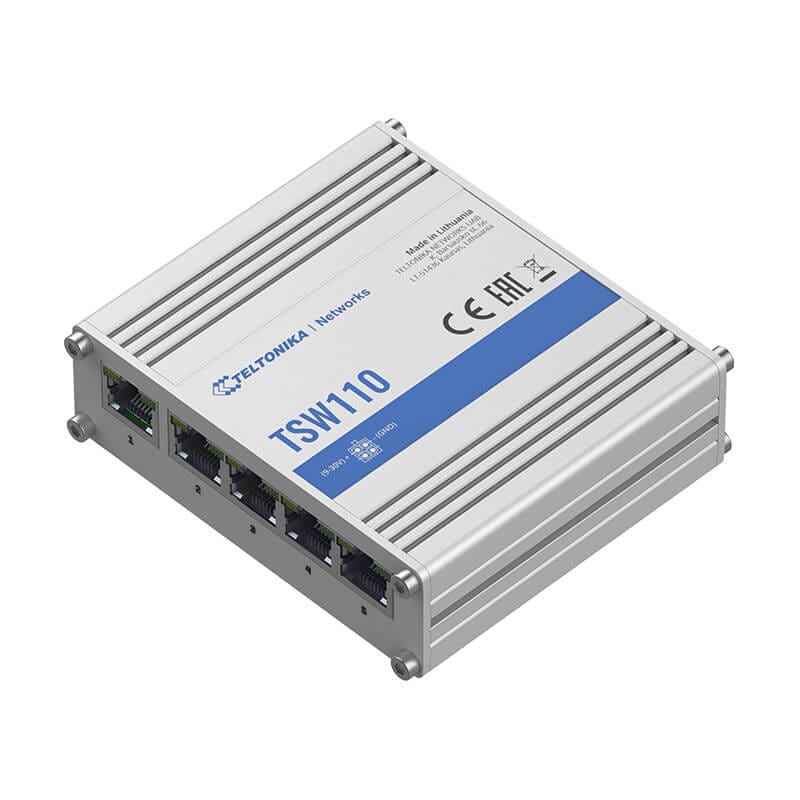

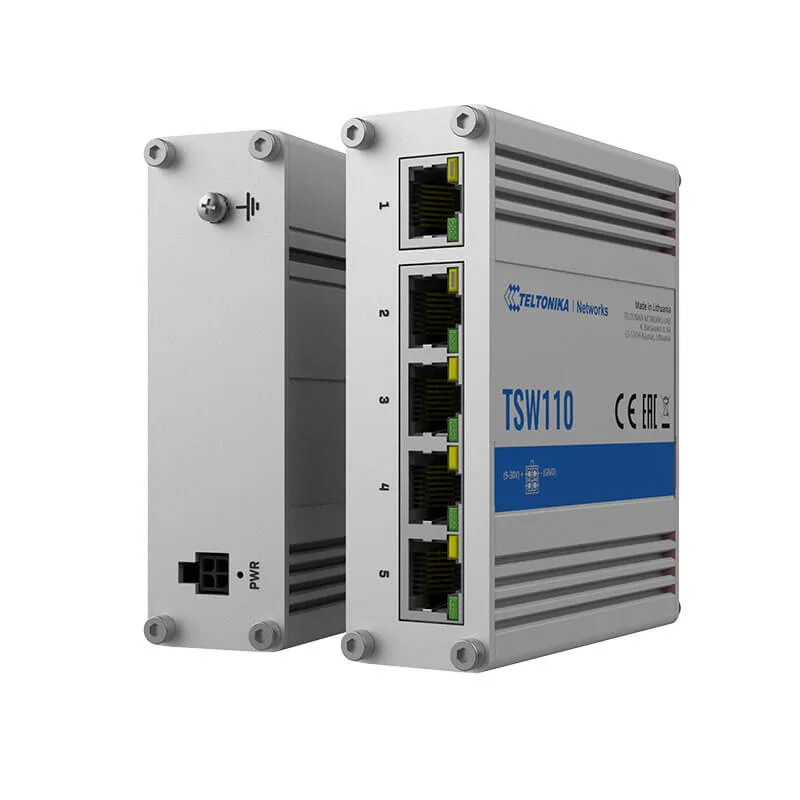

Teltonika TSW110 Industrial Unmanaged Switch

Availability:

In Stock

FEATURES

  • 5 x Gigabit Ethernet with speeds up to 1000 Mbps
  • Plug-N-Play No additional configuration is needed
  • Option to power through passive POE in LAN Port 1
  • Rugged aluminium housing
  • DIN rail and surface mounting options
  • STATUS LEDS – 1 x Power, 10 x Ethernet
  • 9-30 V – Wide range of supported power supply voltages
Payment Options

Secure Payment Options
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
NB: Prices are subject to change without notice

KShs 14,500.00 KShs 18,000.00 VAT exclusive

In Stock

Buy Teltonika TSW110 Industrial Unmanaged Switch in Nairobi Kenya

Teltonika TSW110 is an Unmanaged Industrial 5 port Gigabit switch which is a simplified version of  earlier product – the TSW100. The TSW110 is equipped with five Gigabit Ethernet ports. Its also possible to power up through the first LAN port. This rugged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both reliable data connection and power supply and supports wide power supply voltages (9-30 V).



Category: Tags: , , , , , , ,
Ethernet

  • ETH

    5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

  • Profinet

    Profinet Class A conformance (available with optional order code)

Performance Specifications

  • Bandwidth (Non-blocking)

    10 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

Power

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC

  • PoE (passive)

    Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC

  • Power consumption

    < 0.4 W/ < 1.8 W

Physical Interfaces

  • Ethernet

    5 x RJ45 ports, 10/100/1000 Mbps

  • Status LEDs

    1 x Power LED, 10 x ETH status LEDs

  • Power

    1 x 4-pin power connector

  • Other

    1 x Grounding screw

Physical Specification

  • Casing material

    Full aluminum housing

  • Dimensions (W x H x D)

    100 x 30 x 85 mm

  • Weight

    227 g

  • Mounting options

    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB

EMC Emissions & Immunity

  • Standards

    EN 55032:2015 + A11:2020

    EN 61000-3-3:2013 + A1:2019

    EN IEC 61000-3-2:2019

    EN 55035:2017

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

  • EFT

    EN 61000-4-4:2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014 + A1:2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2004 + A1:2017

Safety

  • Standards

    IEC 62368-1:2018

    EN IEC 62368-1:2020+A11:2020
